Peugeot Expert, Citroen Dispatch, Toyota Proace 2007-2016 Brake Light Reversing Camera | CAM339

Category: Brake Light Reversing Cameras

Printable Version

Ask a question about this product

Description

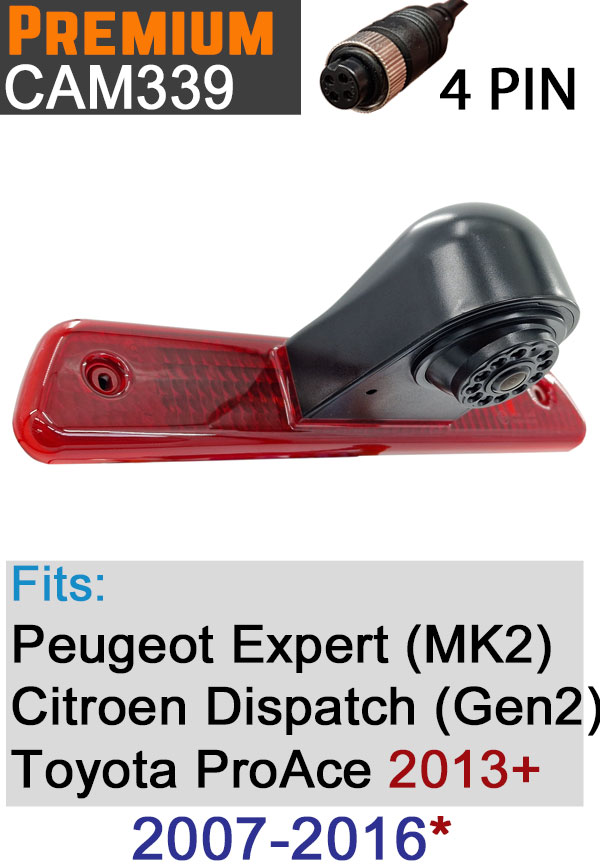

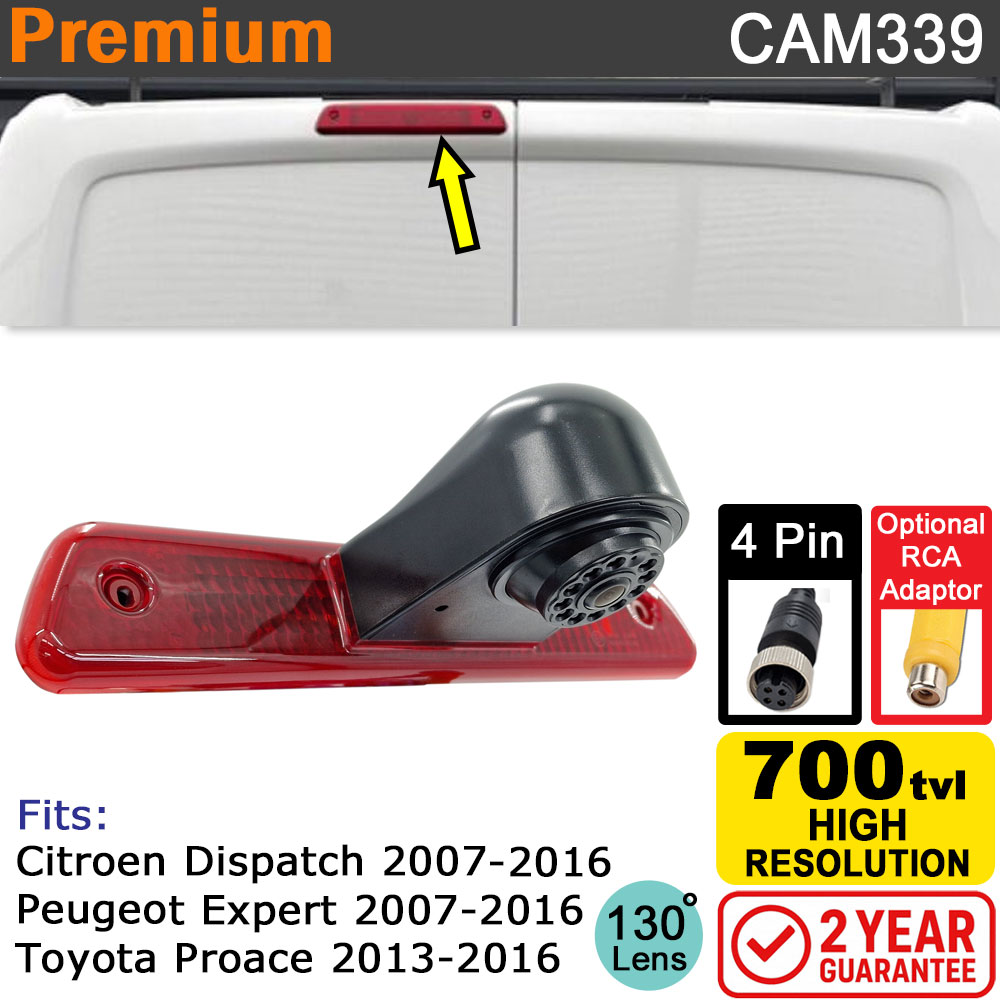

About the Peugeot Expert, Citroen Dispatch, Toyota Proace brake light reversing camera

This brake light reversing camera is ideal for the vans listed, to add a reversing camera where the existing brake light is located.
The image sensor we have installed is one of the latest generation 700TVL premium CMOS, which gives a really nice clear picture.
The camera has the 4 pin plug on it's fly lead.
The camera is waterproof up to IP68.

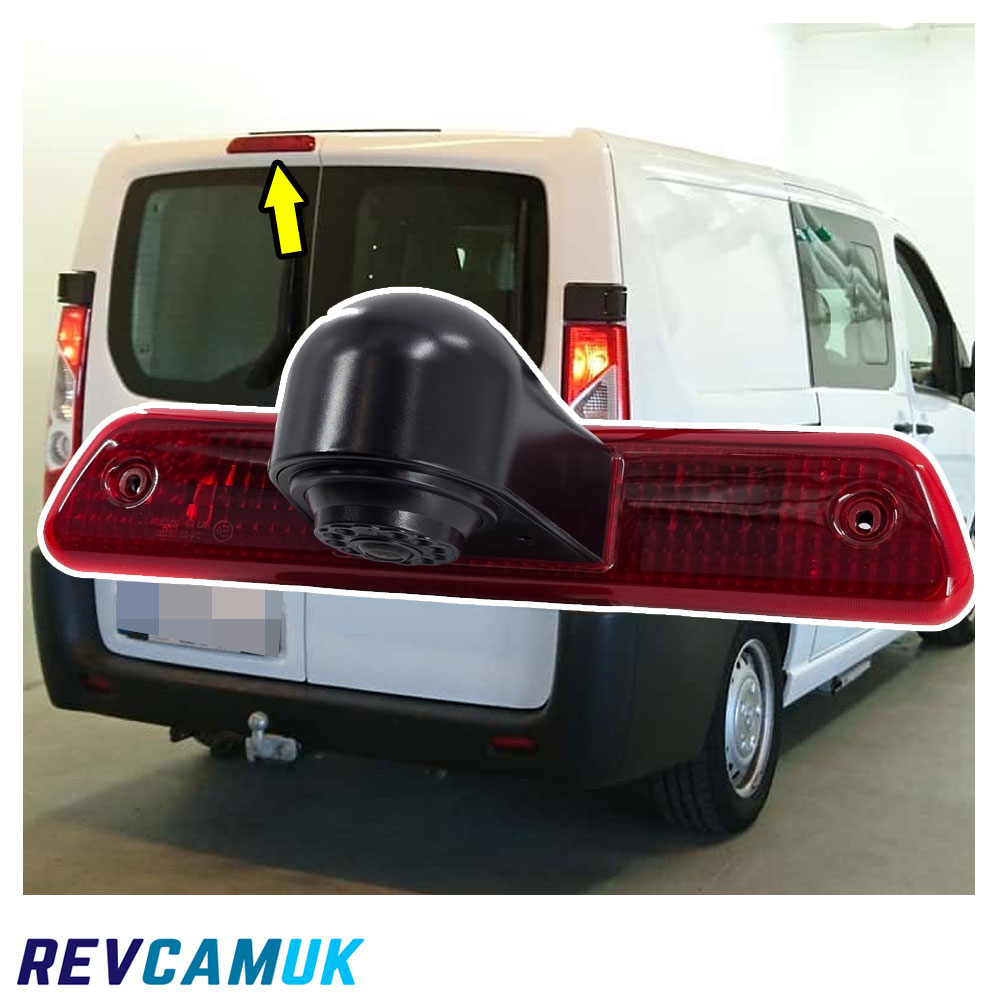

What vehicle does this fit?

Peugeot Expert 2007-2016

Citroen Dispatch 2007-2016

Toyota Proace 2013-2016

Image Sensor for Camera

This particular system uses a 700TVL image sensor and gives a really crisp picture with a good colour replication. With our camera you can be assured of good performance and long term reliability.

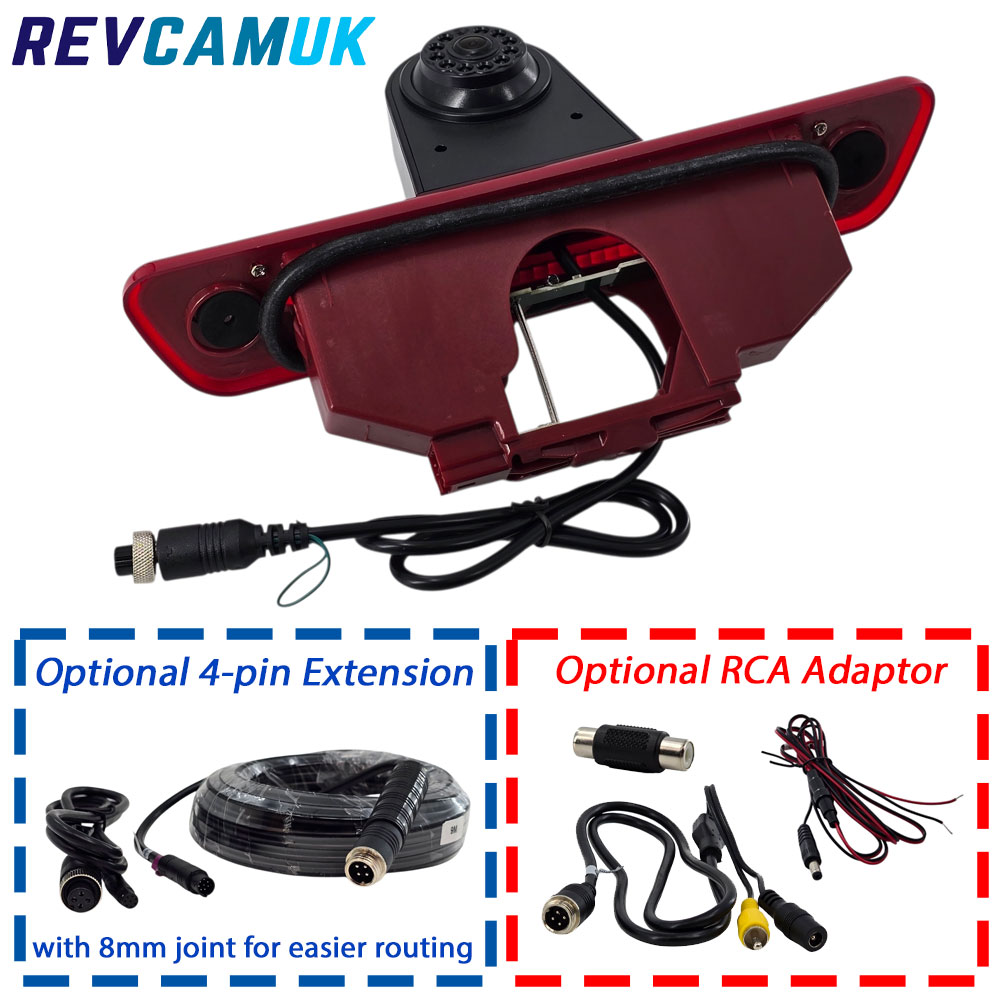

Detailed Images

Reverse camera for Expert / Traveller/ Vivaro / Proace brake light

Instructions

Fitting a 4 pin reverse camera - including using adaptors to RCA/Phono

Download

See our general guide to installing 4 pin reversing cameras. This includes fitting to stereos inc Kenwood / Sony / Pioneer etc.

Fitting guide for 4 pin reversing cameras including to stereo headunits

Technical Specs

Sensor: 1/3" PC4089 CMOS
Effective Pixels: 976(H) x 592(V)
TV line: 700 TVL
Lens: 1.9mm
Min illumination: 0.0 LUX (IR LED on)
IR LEDs: 8 pcs
Night vision: 10m
Waterproof: IP68
View angle: V 85 degrees, H 130 degrees D 160 degrees
Camera lens adjustment: 20 degrees up and down
Voltage: 12 volts
Current consumption: 150mA
Operating temperature: -20 to 70 degrees C
Guideline: Optional (some have a trigger wire to select)
Certificates: FCC, CE, E-mark, RoHS
Connector: 4 pin aviation
