Behind numberplate reversing camera with premium 700TVL CMOS sensor | CAM801P-RCA - Clearance

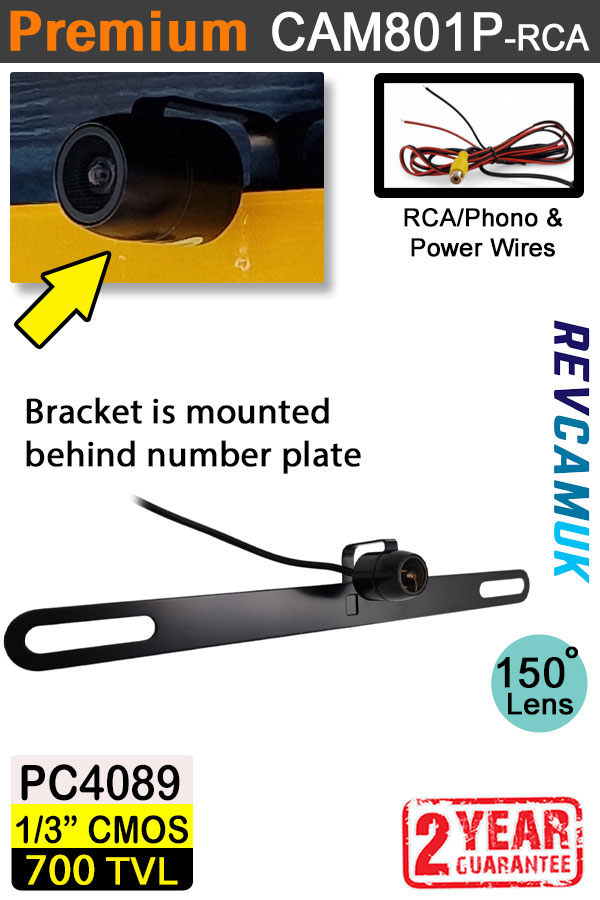

Introducing the behind the number plate bracket reverse camera

We used to stock a similar reversing camera many years ago. When we found this one, which had the higher quality image sensor options available we gladly ordered some. These were always a popular, easy to fit option for people wanting a small, discreet camera. The actual camera part itself is only 22mm deep and 18mm in height, it is attached to a bracket that is mostly hidden behind the numberplate itself. You have the option of using screws to attach this, or my preference is either an adhesive sealant, or some very strong tape such as Scotch Red.

• The camera bracket can be bent slightly to tilt viewing down, or kept angled straight back to view following traffic.
• The camera has a 4 pin aviation plug on the end of an approx 95cm fly lead.  This will fit to any of our RCA monitors on the site and to any monitor or stereo with a yellow phono/RCA input.  *Please note that the wiring has non-waterproof parts after 80cm, so will need to have entered the vehicle body by this point.
• The camera is waterproof up to IP68.
• The approximate viewing angle of the camera is 150 degrees (diagonal).
• The camera is mirror image, this means that it will replicate what you expect to see in your normal mirrors, although this can be converted to non-mirror by cutting a trigger wire on the camera fly lead.
• The camera has static guidelines, these can be removed by cutting a trigger wire on the camera fly lead.
• The camera works on a 12V power supply, most often from the reverse light.
• The camera provides a colour image. The image sensor is to a high spec, see below for more details on this.
