Renault Kangoo 2007-2021, Mercedes Citan 2012-2021 Brake Light Reversing Camera | CAM739

Category: Brake Light Reversing Cameras

Printable Version

Gallery Ask a question about this product

Description

About the Renault Kangoo, Mercedes Citan brake light reversing camera

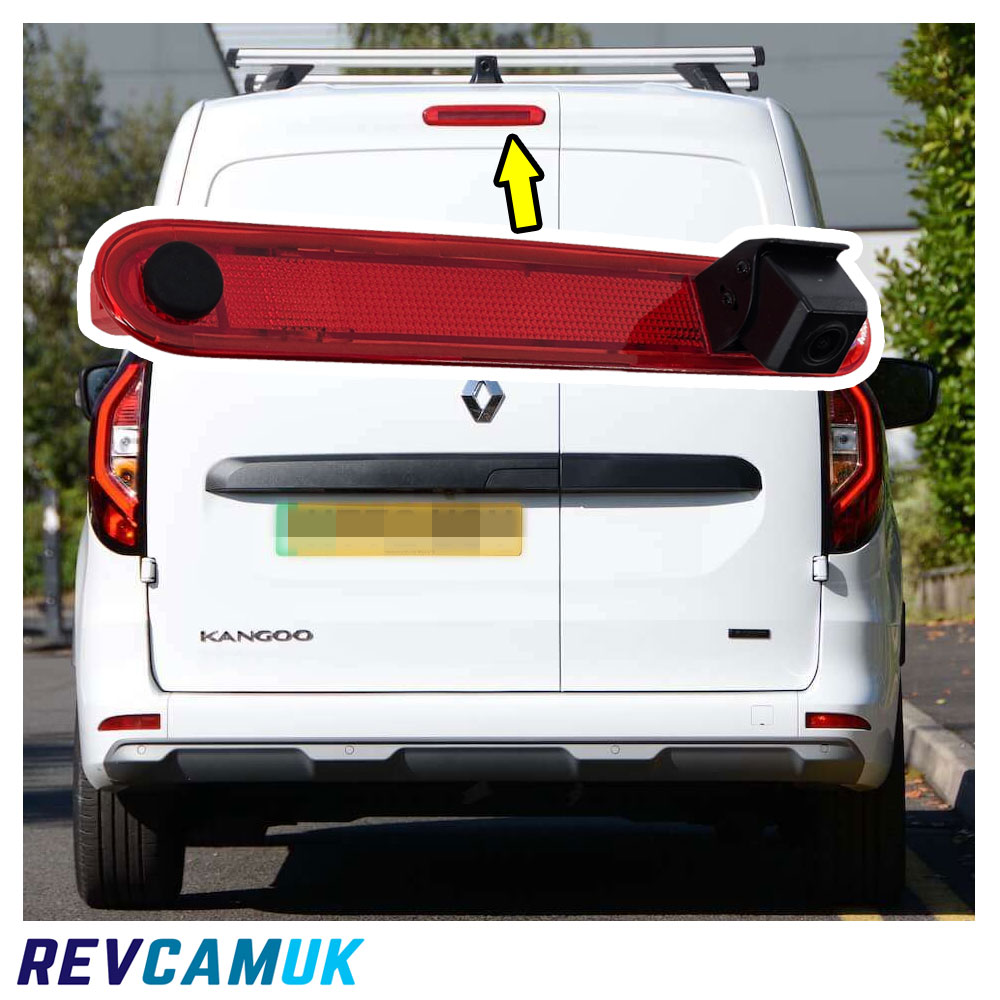

Brake light reversing cameras have quickly become the most popular option when retrofitting a camera on to a panel van as it's easy to install and looks original.
This model is designed to fit the Renault Kangoo (2007-2021) and Mercedes Citan (2012-2021) vans

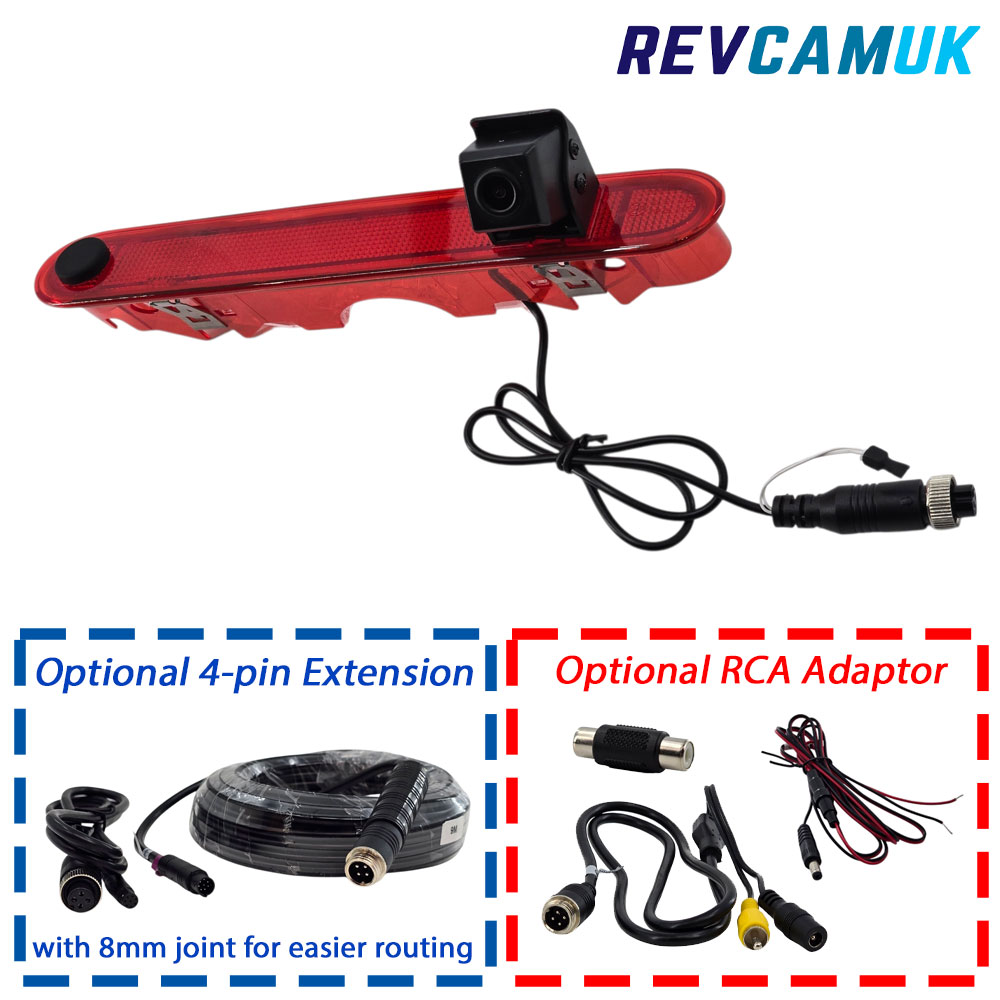

The camera uses the preferred 4 pin aviation connector, however if you intend to use phono/RCA cabling we sell an adaptor set that is selectable in the drop down options of this listing.
150 degrees wide viewing angle.

This model fits:

Renault Kangoo 2007-2021

Mercedes Citan 2012-2021

Image Sensor for Camera

This particular system uses a 1/3" Hi-Res 700TVL CMOS image sensor (not to be confused with the older technology low res CMOS), it gives a sharp picture with good colour replication. With our camera you can be assured of good performance and long term reliability.

Detailed Images

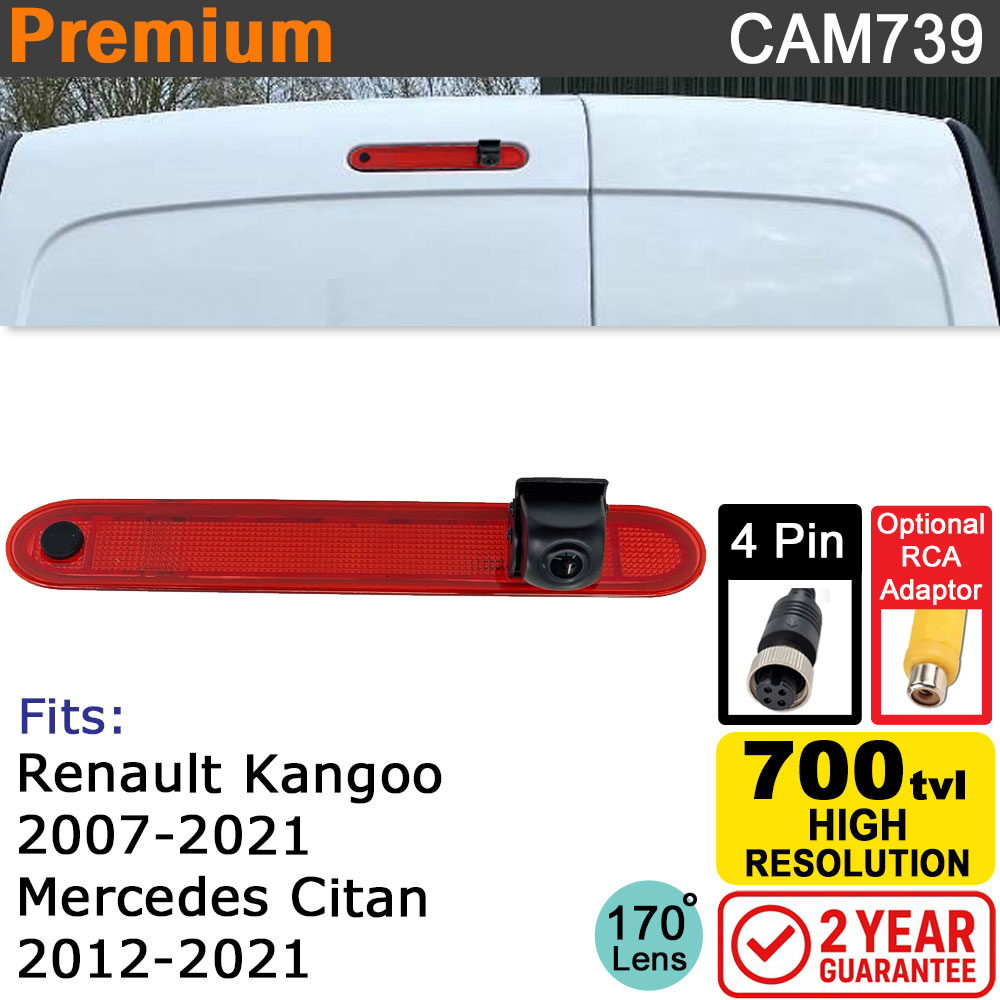

Reversing camera for Renault Kangoo and Mercedes Citan brake light

Picture showing the rear of the camera/fixings/cabling

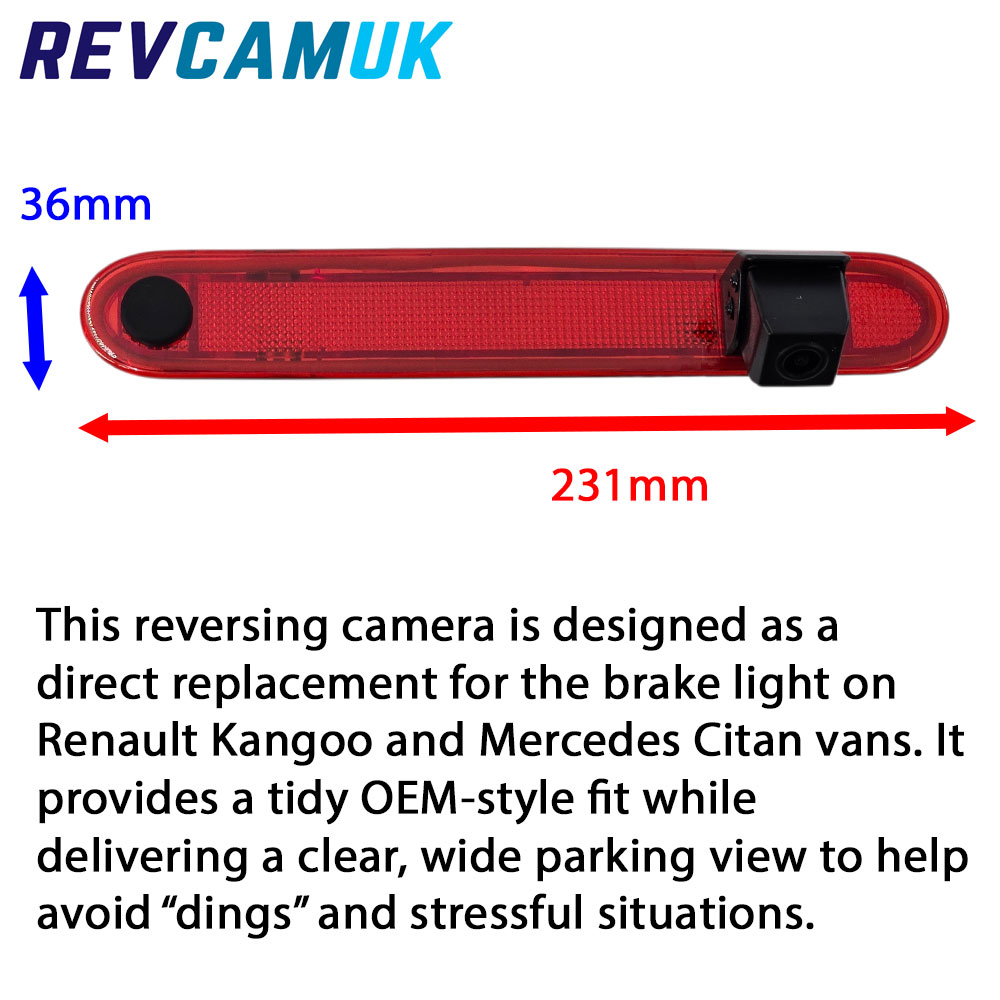

Front view of brake light reversing camera for Renault Kangoo, Mercedes Citan

Instructions

Fitting a 4 pin reverse camera - including using adaptors to RCA/Phono

Download

See our general guide to installing 4 pin reversing cameras. This includes fitting to stereos inc Kenwood / Sony / Pioneer etc.

Fitting guide for 4 pin reversing cameras including to stereo headunits

Technical Specs

Image Sensor: 1/3" CMOS
Total pixels: 510(H) x 492(V)
Video System: CVBS NTSC, 1.0Vp-p 75 Ohm
Horizontal Resolution: 700 TV Lines
S/N Ratio: More than 48dB (AGC Off)
View angle: 150° diagonal / 110° horizontal / 85° vertical
Microphone: no
Power: DC12V +/- 10%, max 2 Watt
Temperature: -20°C - 70°C
