Black Dome 1080P AHD Reversing Camera | CAM070BAHD
Description
CAM070B AHD – Black Dome-Style 1080P AHD Reversing CameraThis is our CAM070B AHD, the high-definition version of our attractive dome-shaped reversing camera. It uses the Sony IMX307 1080P AHD image sensor, producing a crisp, detailed picture with excellent colour reproduction and strong low-light performance. The dome design keeps the camera discreet compared to traditional bracket cameras, and the built-in infrared LEDs provide reliable night-time visibility. Mounting screws and an adhesive foam base are included for a secure and weather-resistant installation. This model is popular with motorhomes, caravans, vans and commercial vehicles. A white version (CAM070W AHD) is also available. The camera includes a two-year guarantee and reflects the trusted quality and long-standing reputation of Reversing Cameras UK. Key FeaturesHigh-Definition Sony IMX307 AHD Image Sensor - The advanced IMX307 1080P AHD sensor delivers a sharp, clean and detailed image with excellent colour accuracy. Its wide dynamic range provides superior performance in varied lighting conditions, improving clarity during both day and night driving. Sleek Dome Housing - The dome-style design gives a more subtle appearance than traditional bracket cameras, helping the camera blend neatly into the vehicle’s exterior. It’s ideal for customers who prefer a cleaner, factory-style look. Strong Night Vision - Infrared LEDs activate in darker conditions, allowing the camera to illuminate the view behind the vehicle. The IR light is invisible to the human eye but enables the camera to produce a clear night-time image. IP68 Weatherproof and Durable - The camera housing, combined with the included foam sealing pad, is designed to resist water ingress and withstand the harsh British climate. Mirror Image Output - The camera produces a mirror image suitable for rear-view use, ensuring that left and right are correctly displayed on the monitor, just like a mirror. Wide Viewing Angle - The lens is designed to provide a broad view of the area behind the vehicle, helping to reduce blind spots and improve reversing safety. Reversing Safety Improvement - Nearly a quarter of all vehicle accidents in the UK occur while reversing. A clear, high-quality rear camera image greatly reduces the risk of damage and improves driver confidence. 4-Pin Waterproof Screw Connector - The camera uses the standard 4-pin aviation screw connector adopted across our reversing camera kits. It provides a secure, weatherproof connection and ensures long-term reliability. AHD compatibility notice Please note: This is a high-definition 1080P AHD camera. It must be used with a monitor that supports AHD video input. Standard-definition CVBS screens will not display an image from this camera. If you need an AHD-capable screen, please see our AHD monitor category. Extension cable optionsWe offer extension cables from 1M to 20M, so you can choose the length that best suits your vehicle layout and installation route. Selected cable lengths are available with a slim 8 mm disconnect joint positioned approximately 1M from the monitor end. This compact joint makes it much easier to feed the cable through tight areas such as grommets, headlining and factory trunking. RCA adaptor set optionThe optional RCA adaptor set is available as a discounted bundle and includes all the parts needed to connect this camera to an RCA-based monitor or head unit. The set consists of a CAB0020 4-pin to RCA adaptor, a CAB101 1.5M power lead with red (+12V) and black (earth) wires and an inline 3A fuse for protection, plus a small RCA/Phono coupler to link a male RCA plug to another male RCA input, if required. What’s in the box
|
Detailed Images

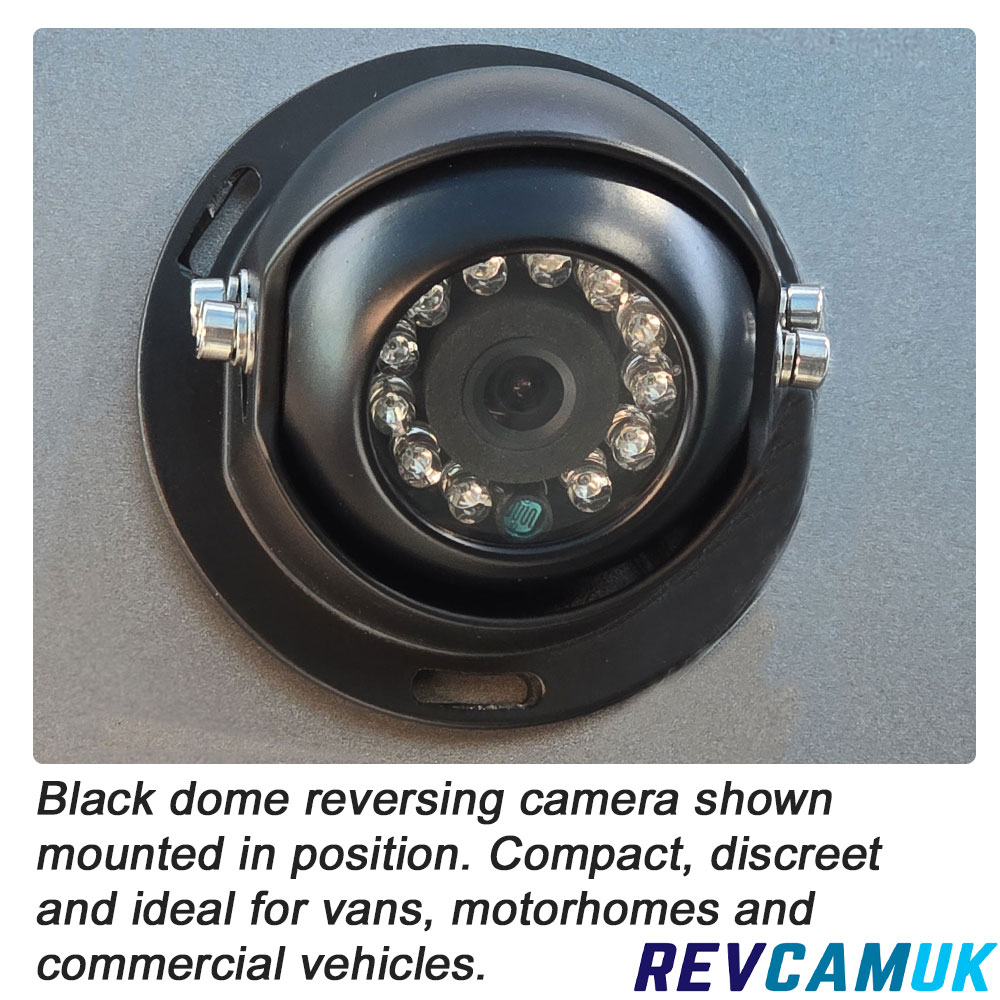

Black dome reversing camera shown mounted in position on a vehicle, compact and discreet design suitable for vans and motorhomes

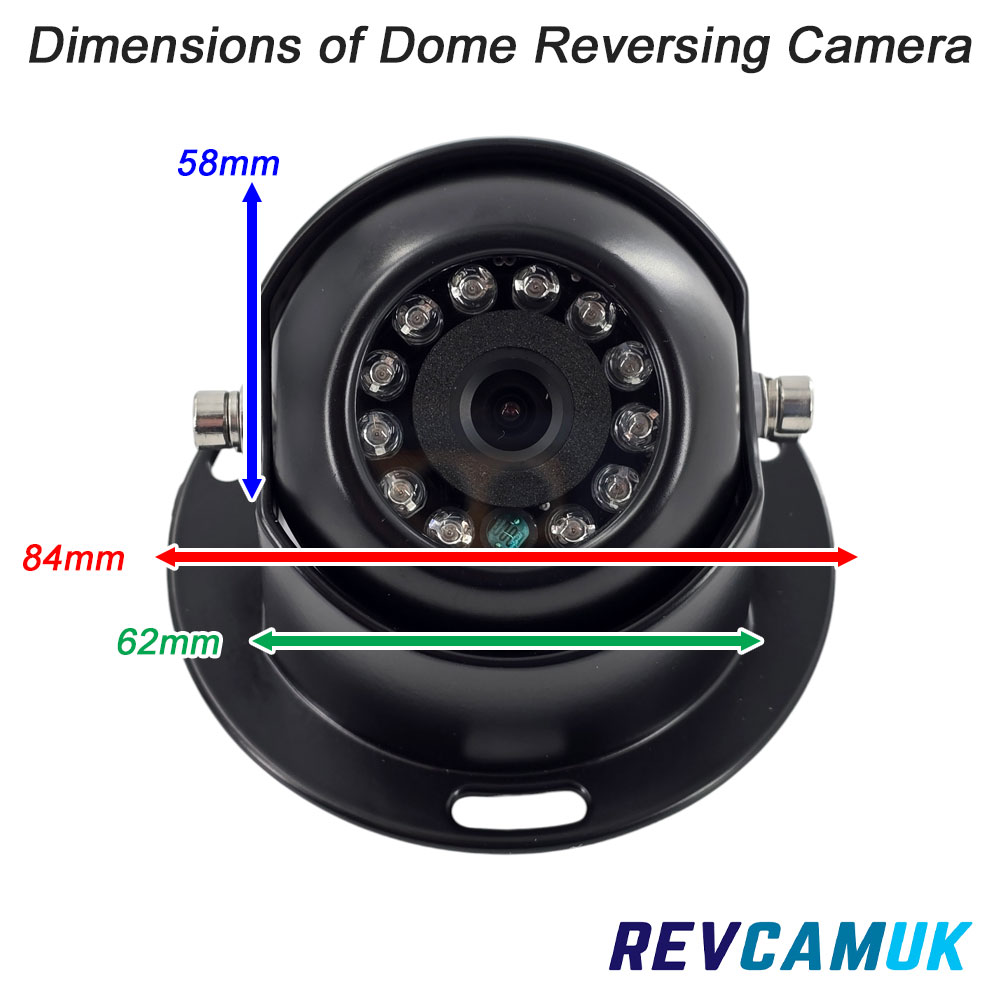

Dimensions image showing the black dome reversing camera with 84mm base width, 62mm main body width and 58mm height

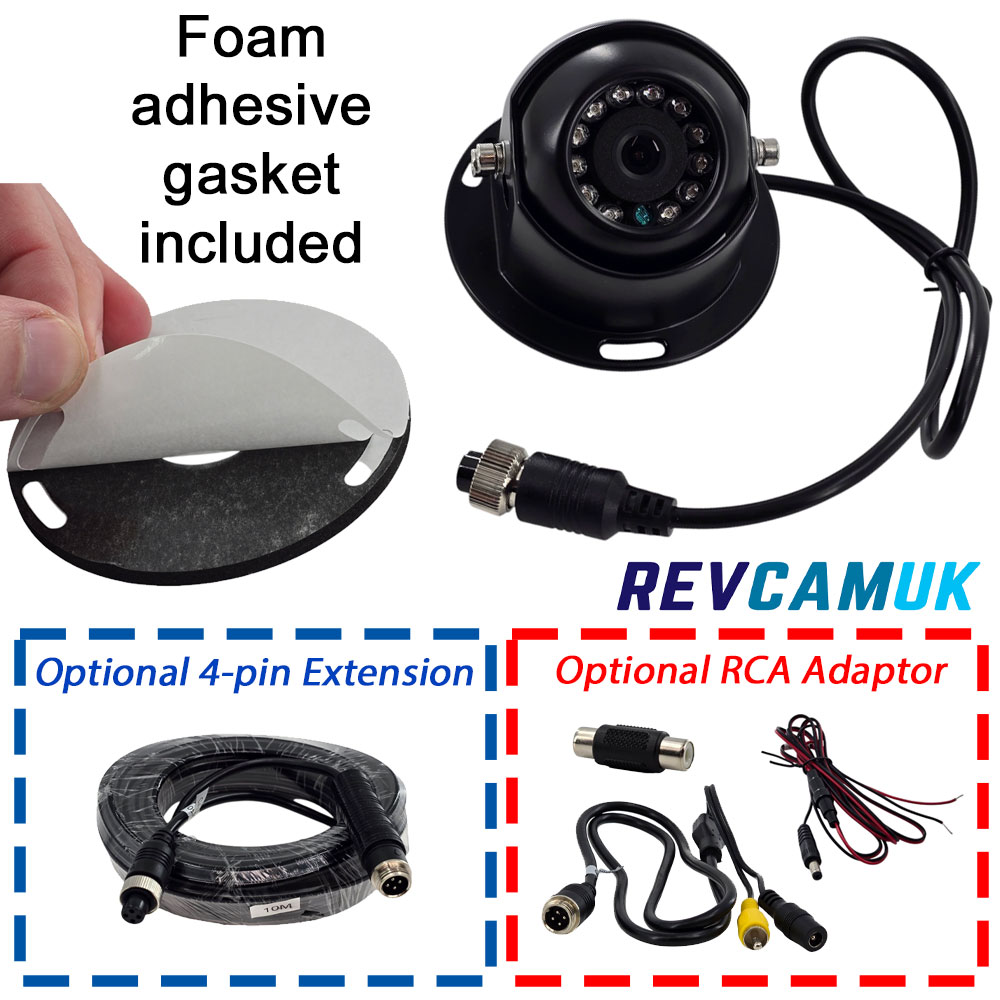

Contents image showing the black dome reversing camera with foam adhesive gasket included, plus optional 4-pin extension cable and optional RCA adaptor
This camera outputs a true 1080P AHD signal, so you’ll need a monitor that supports AHD-HD input. It will not work with standard analogue CVBS monitors.
Yes — it’s designed for high-definition use and if your monitor supports continuous display (not just when reversing) you can use this camera as a general rear-view camera as well as for reversing.
This dome style camera comes with a 4-pin screw-locking aviation connector on a short fly-lead, and the base plate (84 mm diameter) is made to mount on a vertical surface such as a van’s rear wall. It includes foam adhesive gasket to seal the base, making it suitable for exterior installation.
It uses a Sony IMX307 sensor with 1920×1080 resolution and a 120° field of view. That gives you a wide clear picture behind your vehicle, with less distortion than cheaper ultra-wide lenses.
Yes — the housing has an IP68 rating, so it’s built to withstand heavy rain, road spray and the typical British weather conditions. It’s well suited for motorhomes, vans and heavy usage.
You can choose from extension cables ranging from 1 m up to 20 m. There is also an optional version with an 8 mm small joint in the cable for tight routing sections. The base fly-lead still uses the 4-pin aviation connector.
It comes with 12 infrared LEDs and offers effective night vision up to around 30 feet in darkness thanks to the high-sensitivity sensor. You’ll get a usable image even on unlit driveways or campsites.
| Image sensor: H8550+SONY IMX307 1/2.8" colour CMOS |
