Number Plate 1080P AHD Reversing Camera | CAM103AHD

CAM103AHD – 1080P AHD Number Plate Reversing Camera with Night Vision

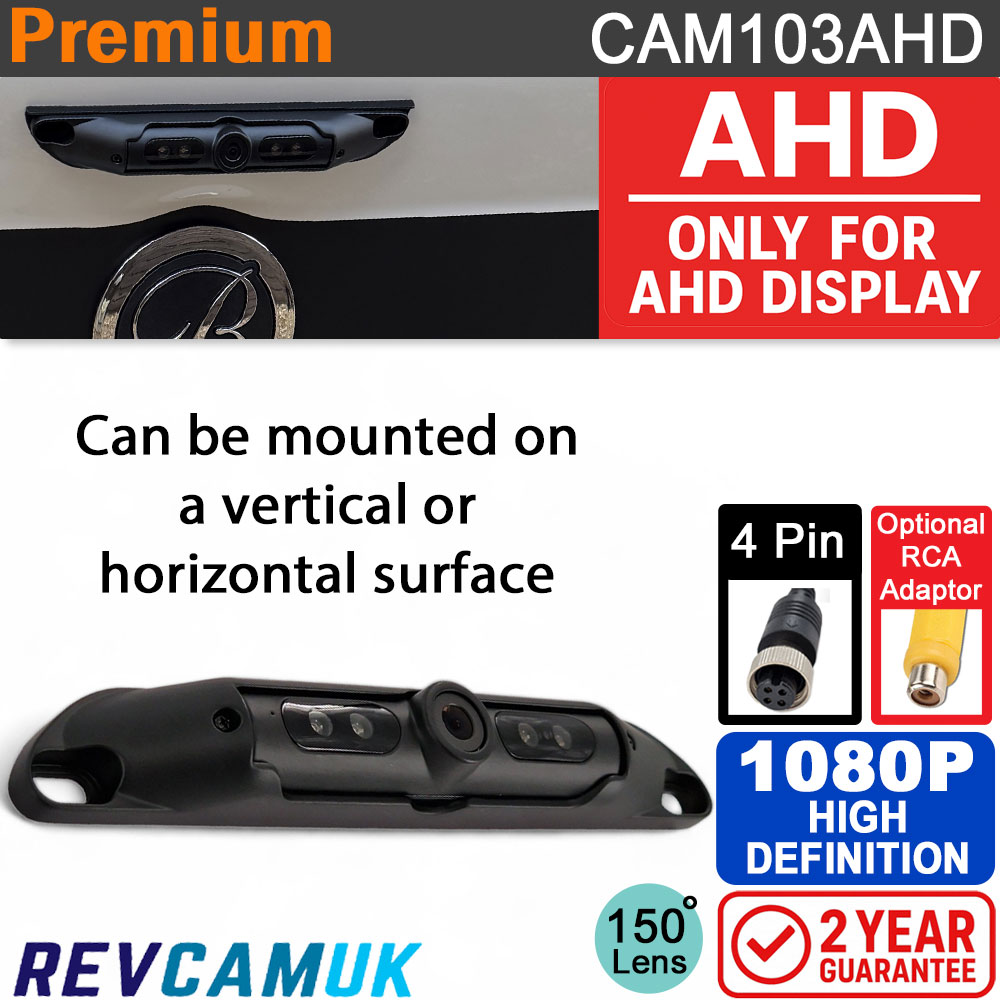

This is our CAM103AHD, a high-definition number plate reversing camera fitted with a premium Galaxy 1080P AHD image sensor for a crisp, detailed picture. It features an adjustable tilt mechanism so you can fine-tune the viewing angle, a high-quality 150° aspheric wide-angle lens, and built-in IR LEDs for night vision. The white-finished housing offers superb build quality with excellent sealing, and the design allows it to be mounted on either a horizontal or vertical surface around the number plate area. This camera must be used with an AHD-compatible monitor and comes with our two-year Reversing Cameras UK guarantee.

Key Features

1080P AHD Galaxy Image Sensor - The upgraded Galaxy 1080P AHD sensor provides a sharp, truly high-definition image with excellent colour accuracy and clarity. It is a significant improvement over standard definition and is ideal for customers who want a high-definition, more modern image.

High-Quality 150° Aspheric Lens - The aspheric lens delivers a genuinely wide 150° field of view without creating the distorted “fishbowl” look that many ultra-wide lenses suffer from. It provides excellent usable coverage behind the vehicle.

Superb Build Quality - Traditional number plate cameras have a reputation for leaking or failing. This model is completely different. Installers and auto electricians who have tried it have been pleasantly surprised by the robustness, reliable sealing and consistent long-term performance.

Adjustable Tilt Mechanism - The tilt angle can be rotated and locked into place, allowing you to set the perfect viewing angle for your vehicle. Helpful for number plate-level installs, crossbars, or locations where height or lighting varies.

IP69K Waterproof Rating - Designed to withstand storms and road spray. IP69K is the highest level of water and dust ingress protection available, offering long-term durability in all conditions.

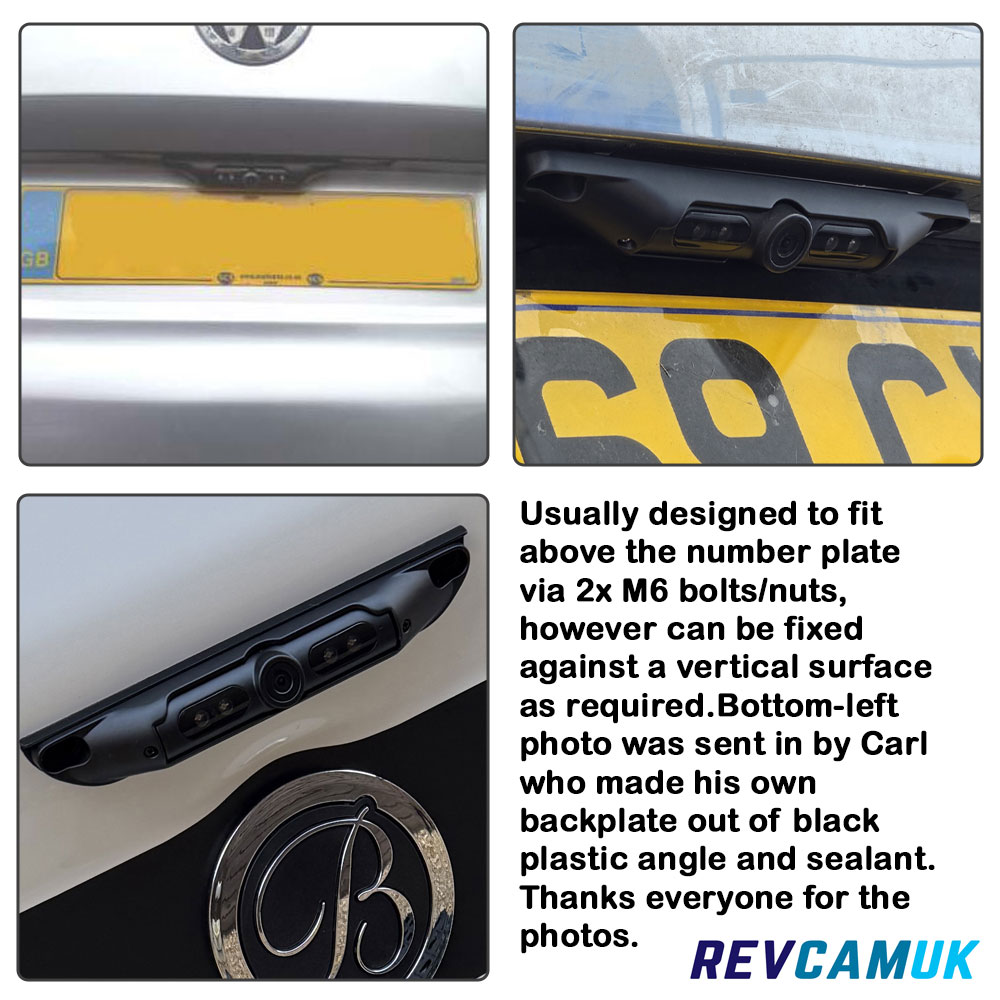

Flexible Mounting Options - The camera can be mounted on both vertical surfaces (such as rear walls) and horizontal surfaces (such as under number plate trims). The internal barrel camera can be repositioned to ensure the picture is the correct way up, regardless of fitting position.

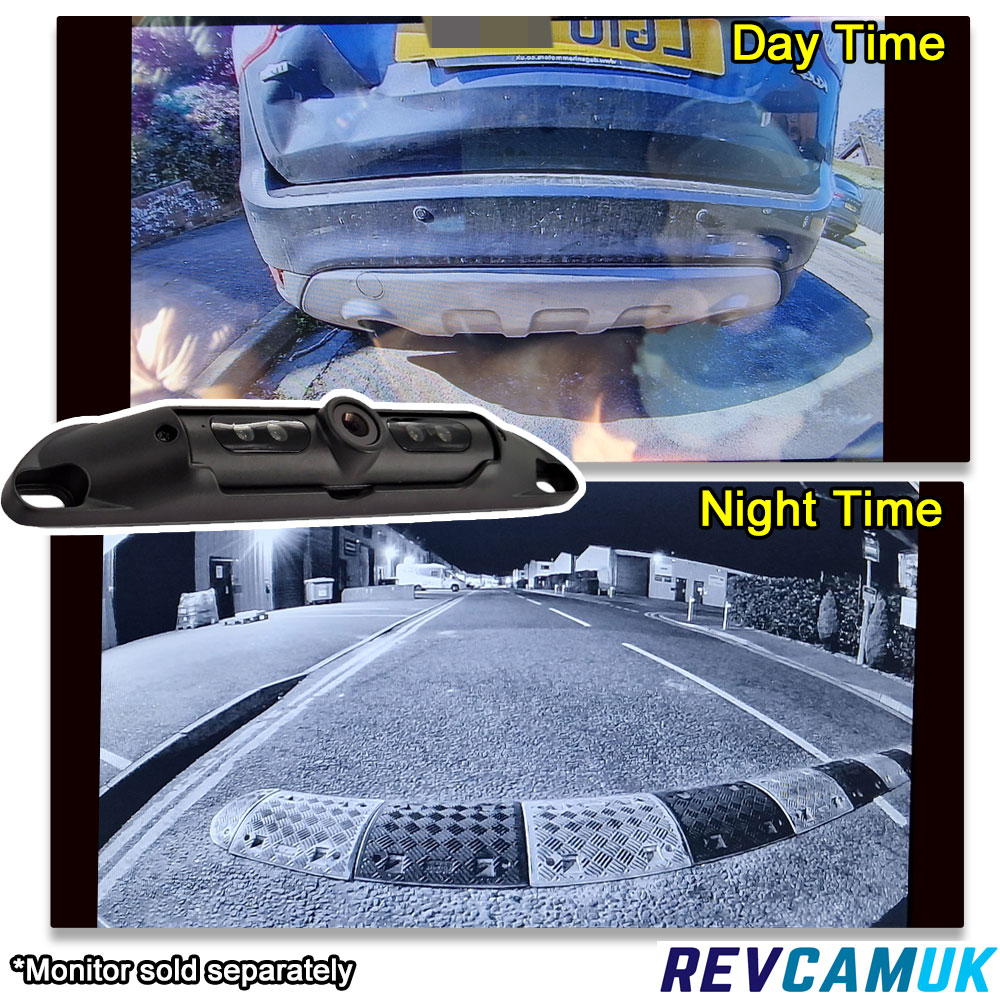

Night Vision IR LEDs - Unusual for number plate cameras, this model includes infrared LEDs to illuminate the area behind the vehicle in low-light conditions. IR light is invisible to the human eye, but the camera sees it clearly to help you reverse safely at night.

Built-In Microphone - Useful when installing alongside a monitor with integrated speaker audio. Allows you to hear what is happening behind the vehicle if required.

4-Pin Aviation Connector with Optional RCA Adaptors - The camera uses the popular 4-pin screw connector for video, power and audio. If you need to connect to an RCA-based monitor or stereo head unit, a discounted adaptor bundle is available.

Two-Year Reversing Cameras UK Guarantee - This camera includes our two-year guarantee for peace of mind.

AHD compatibility notice

Extension cable options

We offer extension cables from 1 m to 20 m to suit different installation routes. Selected lengths can be supplied with a slim 8 mm disconnect joint, positioned approximately 1 m from the monitor end, making routing through tight spaces such as grommets, headlining and factory trunking much easier. This joint is not waterproof and must remain inside the vehicle.

RCA adaptor set option

If your monitor or stereo head unit uses RCA inputs, an optional discounted adaptor bundle can be added. It includes:

• 1 × CAB0020 4-pin to RCA adaptor (video and power breakout)
• 1 × CAB101 1.5 m power lead with inline fuse (red +12 V and black earth)
• 1 × RCA/Phono coupler for converting male-to-male RCA connections

This provides everything needed to connect the camera to an RCA-based monitor.

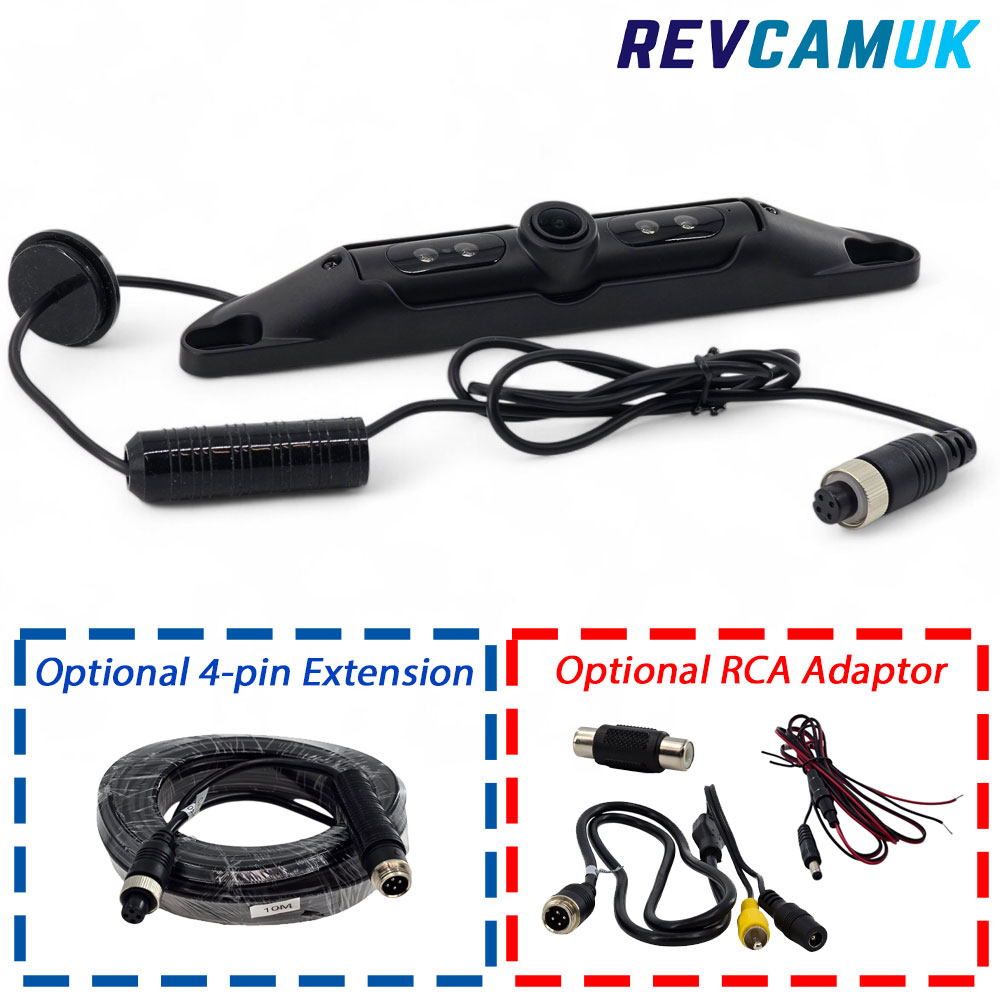

What’s in the box

• 1080P AHD number plate reversing camera (CAM103AHD)
• Mounting screws and fittings
• Optional 1 m–20 m extension cable (with 8 mm disconnect option on selected lengths)
• Optional RCA adaptor bundle (CAB0020, CAB101, RCA coupler)
