PM99E: Premium Reversing Camera Kit - 9" Dash Screen + "diamond" Shape Reversing Camera Kit

Price

£195.00

VAT Included £32.50
Availability IN STOCK
Product Code: PM99EB-SD
Camera Colour
AHD Upgrade?
Cable Length Options
Add extra monitor bracket?
Add a lighter plug?
Add a fuse tap?
Quantity
(from 1 to 20)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

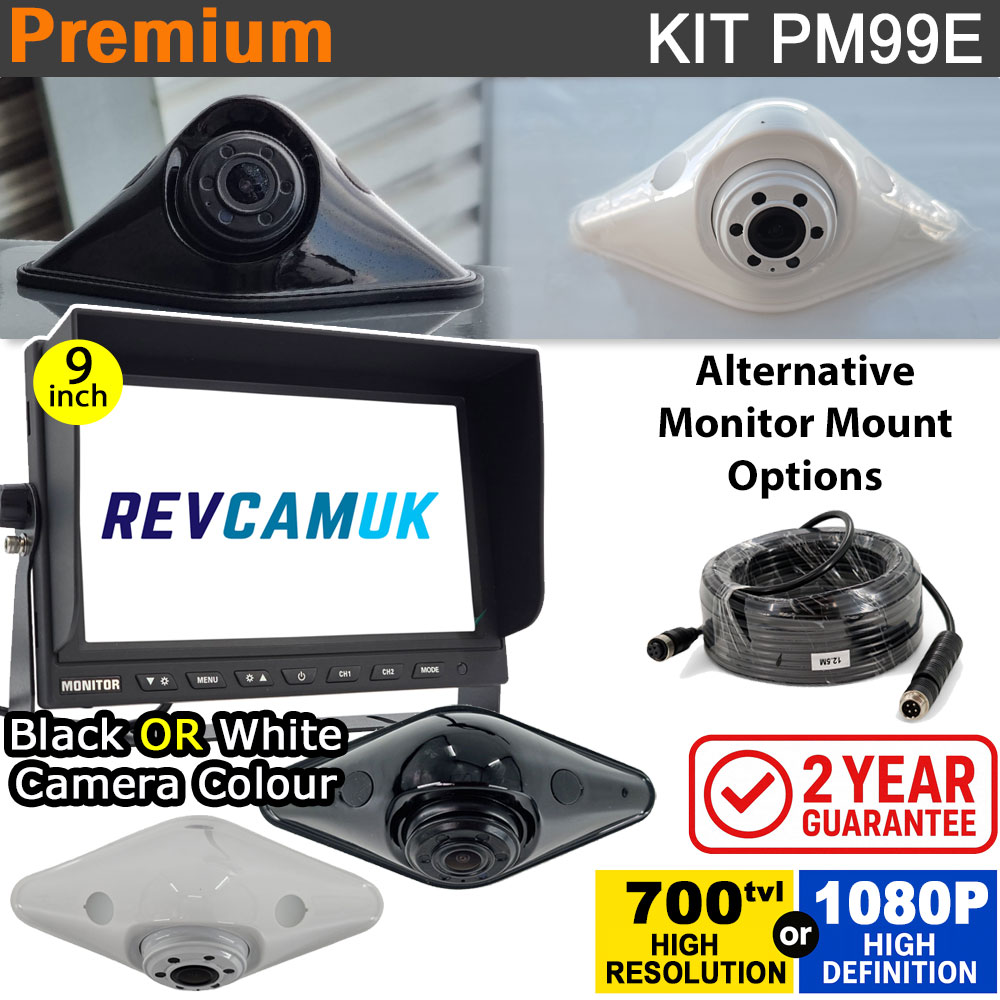

PM99E Diamond Reversing Camera Kit with 9-inch Dash Monitor

The PM99E combines a 9-inch heavy-duty dash monitor with a diamond-shaped reversing camera, designed for mounting high on the rear of a vehicle. Available in black or white, the kit comes with a 700TVL sensor as standard, or can be upgraded to the C2399 1080P AHD image sensor for sharper definition and improved low-light performance. Built with a premium wide-angle all-glass lens and IP68 waterproofing, this system is designed for durability and clarity in all conditions.

Key features

  • 9-inch heavy-duty dash monitor with high-resolution digital LCD panel
  • Diamond-style reversing camera, black or white, adjustable for angle
  • Choice of 700TVL PC4089 sensor or C2399 1080P AHD upgrade
  • 150° wide-angle all-glass composite lens – same quality as our brake light cameras
  • Easy-fit single aviation cable powers camera directly from the monitor
  • Optional lighter plug or fuse tap for simple installation
  • 12–24 V DC input with surge protection up to 32 V
  • UK tested and supported, with 2-year guarantee

More about this kit

Camera options: The standard 700TVL PC4089 sensor gives clear and reliable images. The C2399 AHD 1080P upgrade increases resolution by 60%, with an IPS panel display, improved dynamic range, richer colours, and stronger night vision.

Diamond housing design: This unique style mounts neatly on the rear wall of the vehicle and is adjusted to look downward when reversing. The housing is tough, discreet, and built for long-term use.

Lens quality: Uses a premium all-glass composite lens (the same specification used in our brake light cameras), ensuring consistent clarity without the fading issues of plastic-based lenses.

Monitor quality: The 9-inch display uses a high-resolution digital LCD panel with over three times the pixels of analogue LCDs, producing crisp images. Monitor brightness auto-adjusts at night or in tunnels to reduce glare.

Easy installation: A single aviation cable connects monitor and camera, making fitting straightforward and avoiding CANBUS issues common in modern vehicles.

UK-tested reliability: Each kit is tested at the factory and again in the UK. All cables, IR LEDs, trigger wires, and menu functions are checked to reduce the chance of faults, making this a favourite with professional installers.

Specification snapshot

Monitor 9-inch digital LCD display, 800x480 resolution, 2 inputs, PAL/NTSC auto, remote control
Camera Diamond-shaped reversing camera, black or white
Camera sensor PC4089 700TVL (standard) or C2399 1080P AHD (upgrade)
Viewing angle 150° wide-angle all-glass lens
Weatherproofing IP68 waterproof housing
Power 12–24 V DC, surge protected to 32 V
Guarantee 2-year UK warranty and lifetime support

What’s in the box

  • 9-inch dash monitor with U-shape mounting bracket
  • Diamond reversing camera (black or white)
  • Main harness and 4-pin camera lead (12.5 m standard length)
  • Standard hardwire lead, optional lighter plug or fuse taps
  • Optional additional monitor bracket if selected
Detailed Images

Add an additional monitor bracket/mount

We can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit.  Please see the photo below, and make your selection using the drop down menu above the add to cart button.

Bracket selection for dashboard mounted rear view monitors

See our video below for details about the brackets in the photo above.

Choice of kit power options

  • On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
  • The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
  • For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring.
  • Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to "piggyback" off an existing circuit from your fuse box. We have standard blade, mini blade, or micro blade available to match your fuse box. Read our Fuse Tap installation instructions PDF for more information.
Reversing Camera Kit Power Options

Yes you can, the monitor powers the camera, this means you can choose to watch the camera at any point, you can drive with it "always on".

The standard high resolution camera/monitor is a very nice picture, it gives you everything you need for visibility.  The only reason to upgrade to AHD is if you want to see even more detail such as the detail of gravel on the floor, or want the colours of cars etc to "pop" on the screen and be even more vivid.  In terms of safety, both are on par with each other.

Our easy wire fuse tap options are new for 2023.  We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses.  The other side has a "piggyback" fuse holder aka fuse tap.  You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download).  The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit.  On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).

Rough guide:

  • 5M is good for an average size car
  • 7.5M is good for large cars and shorter wheelbase vans
  • 10M is good for a medium length van (around 6M)
  • 12.5M is good for most vehicles up to around 8.5M long (covers most motorhomes except the super long)
  • 15M is good for vehicles up to around 10/11M eg rigid lorry, small coach.
  • 20M is good for super long vehicles

Our general 4 pin cable based fitting instructions.

4 pin reversing camera kit fitting instructions

Standard Kit Tech Specs 700TVL

Monitor

9” Colour LCD screen
Power supply: 12V/24V
Digital Screen Resolution: 800 x3(RGB)x480
Brightness: 300cd/m2
2 Inputs
PAL/NTSC/AUTO
Full function Remote Control

Camera

Image Sensor : CMOS4089
Effective Pixels : 976(H) * 592(V)
TV Lines : 700TVL
TV System : PAL
Lens : 1.9mm
Min illumination 0Lux (LED ON)
IR LED's : 6pcs
Night Vision Distance : 30ft
Waterproof : IP68
Viewing angle : 150°(D)
Dimensions : 122*57*49.4 (mm)
Camera lens adjustable : 20° (up&down)
Power Voltage : 12V
(our monitors supply 12V despite input voltage being 24V)
Current Consumption : 150mA
Operating temperature : -20℃~+70℃

Upgrade Kit Tech Specs 1080P

Monitor

9” Diagonally Measured Colour IPS screen
Power supply: 12V/24V
Digital Screen Resolution: 1024 x3(RGB)x600
3 Hybrid Inputs
PAL/NTSC/AUTO
Full function Remote Control

Camera

Image Sensor : CMOS2399
Effective Pixels : 1920(H) * 1080(V)
TV System : PAL
Lens : 1.9mm
Min illumination 0Lux (LED ON)
IR LED's : 6pcs
Night Vision Distance : 30ft
Waterproof : IP68
Viewing angle : 150°(D)
Dimensions : 122*57*49.4 (mm)
Camera lens adjustable : 20° (up&down)
Power Voltage : 12V
(our monitors supply 12V despite input voltage being 24V)
Current Consumption : 150mA
Operating temperature : -20℃~+70℃
