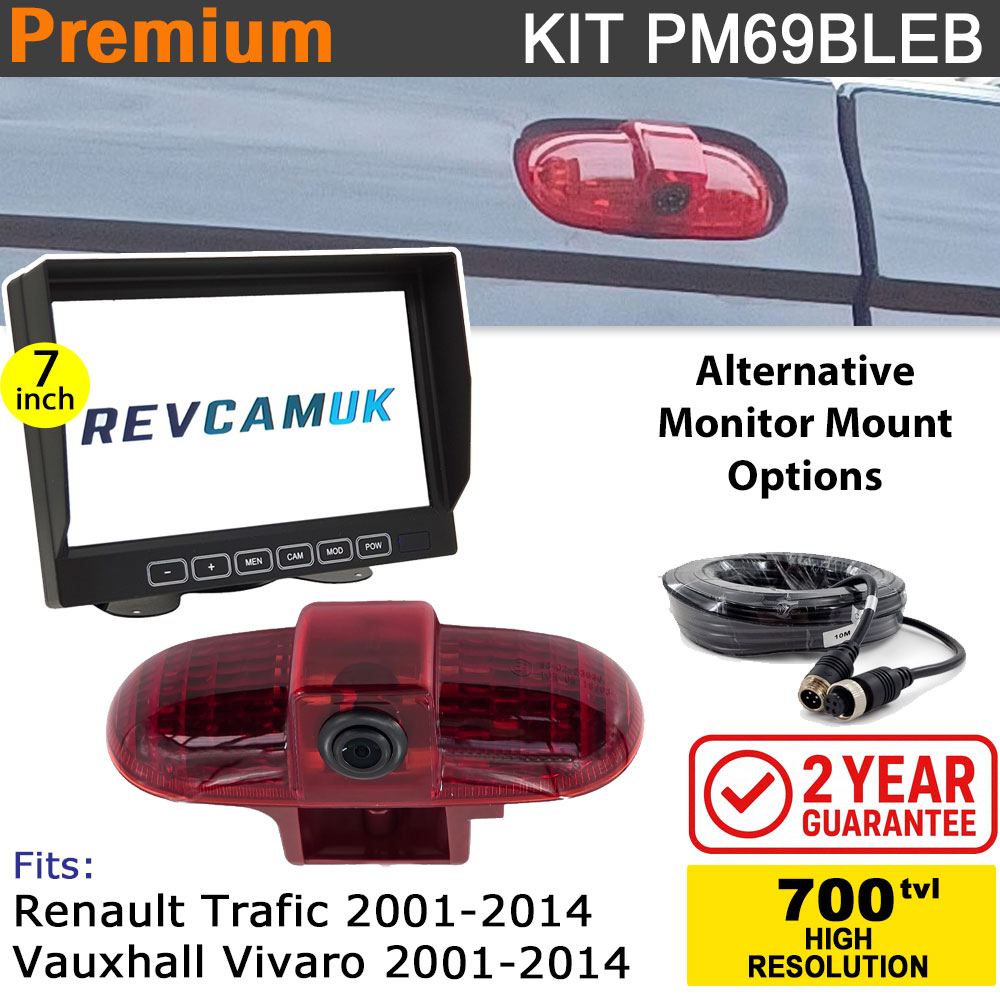

Vauxhall Vivaro / Renault Trafic (2001-2014) Brake Light Reversing Camera kit with 7" Monitor Display - PM69BLEB
Description
About the Vauxhall Vivaro / Renault Trafic brake light reversing camera with 7 inch dash monitor kitWhen somebody wants a reversing camera for a van, the most popular option these days is a brake light reversing camera. This is because of the following reasons:
The reversing camera installed in this brake light reverse camera doesn't have adjustment up/down, but this should still give a nice picture of what is behind you. This particular camera kit is supplied with a 7 inch high resolution dash monitor. What vehicle does this fit?Vauxhall Vivaro 2001-2014 Renault Trafic 2001-2014 Choice of kit power options
Additional monitor bracket/mount optionsWe can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit. Please see the photo below, and make your selection using the drop down menu above the add to cart button. See our video below for details about the brackets in the photo above. Easy-Fit Wiring
Image Sensor for CameraThis particular system uses the PC4089 1/3" Hi-Res CMOS image sensor (not to be confused with the older technology low res CMOS), this runs at 700TVL and gives a really crisp picture with a good colour replication. We use 4xglass composite lens instead of the cheaper 2xglass, 2xplastic lenses, which cloud/fade over time due to UV exposure. With our camera you can be assured of good performance and long term reliability. Monitor has Digital LCD Panel - Not Standard LCDOur monitor uses a Hi-Res digital panel LCD screen with an 800x480 pixel display. To complicate matters we have seen a difference in quality between 800x480 pixel panels. We only stock LCD panels that have the brightest backlights, and the best colour replication. This costs us approx. 50% more than we could buy the monitors for, however, the reliability, picture quality, our reputation in keeping our many return customers happy, means we are willing to pay the extra (you get what you pay for!). 2 Year GuaranteeWe supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty. Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts. Parts Tested in the UKThe parts of this kit will have been tested twice, once by the factory and once by us. We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part. Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past. This is why professional fitters love us. |
Detailed Images
Monitor Dimensions
Wiring Layout (monitor side)
Choice of power connection method to insert in to the monitor power socket (powers complete kit)
Selection of additional brackets that can be ordered to fit the monitor. Discount price when ordered with kit. Standard bracket is still supplied.
Absolutely. Our monitors and rear view cameras are all suitable for leaving on all the time. We would like to mention that the single reversing cameras have been setup to provide an optimal view down towards the bumper area, and as such can not be used to view back down the road at following traffic.
Definitely. Our monitor wiring harnesses all have a power socket attached. You will always be supplied with a standard hard wire kit, plus there are fuse tap options available. It would be a case of unplugging the lighter plug and using the standard hard wire kit instead. A lot of customers tell us they are ordering the lighter plug just for trying it out before fitting.
Our easy wire fuse tap options are new for 2023. We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses. The other side has a "piggyback" fuse holder aka fuse tap. You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download). The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit. On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).
All of our brake light cameras have fixed guidelines that will display on the picture. These can be removed by snipping a little loop of wire near the 4 pin screw connector. You can choose to have no guidelines, or you can add the monitor guidelines. The monitor guidelines can be customised inside the menu settings (please see the downloadable PDF manual for the dash monitor supplied with this kit).
Instruction manual for the 7 inch monitor display covering installation and the menu system - including using adjustable guidelines from the monitor (requires reverse trigger connection)
Monitor7” Colour LCD screen CameraSensor: 1/3" Super CMOS |
