Numberplate Reverse Camera - Sony CCD - RCA (Phono)

Category: Home

Printable Version

Gallery Ask a question about this product

Description

Number plate "butterfly wings" reversing camera - CAM085

One of the smallest cameras we stock with a CCD image sensor fitted.
Recent upgrade from the smaller 1/4" CCD sensor to the 1/3" Sony CCD 600tvl sensor (639 sensor).
CCD sensors give improvements to dynamic range, uniformity etc. so you can expect a nice quality image.
Usually mounted on the underside of a number plate ledge.
This version has the RCA Phono connector fitted for video signal and a 2.1x5.5mm DC socket for power. We supply a DC power lead that plugs in to this and terminates in a red and black wire for power/earth.

Detailed Images

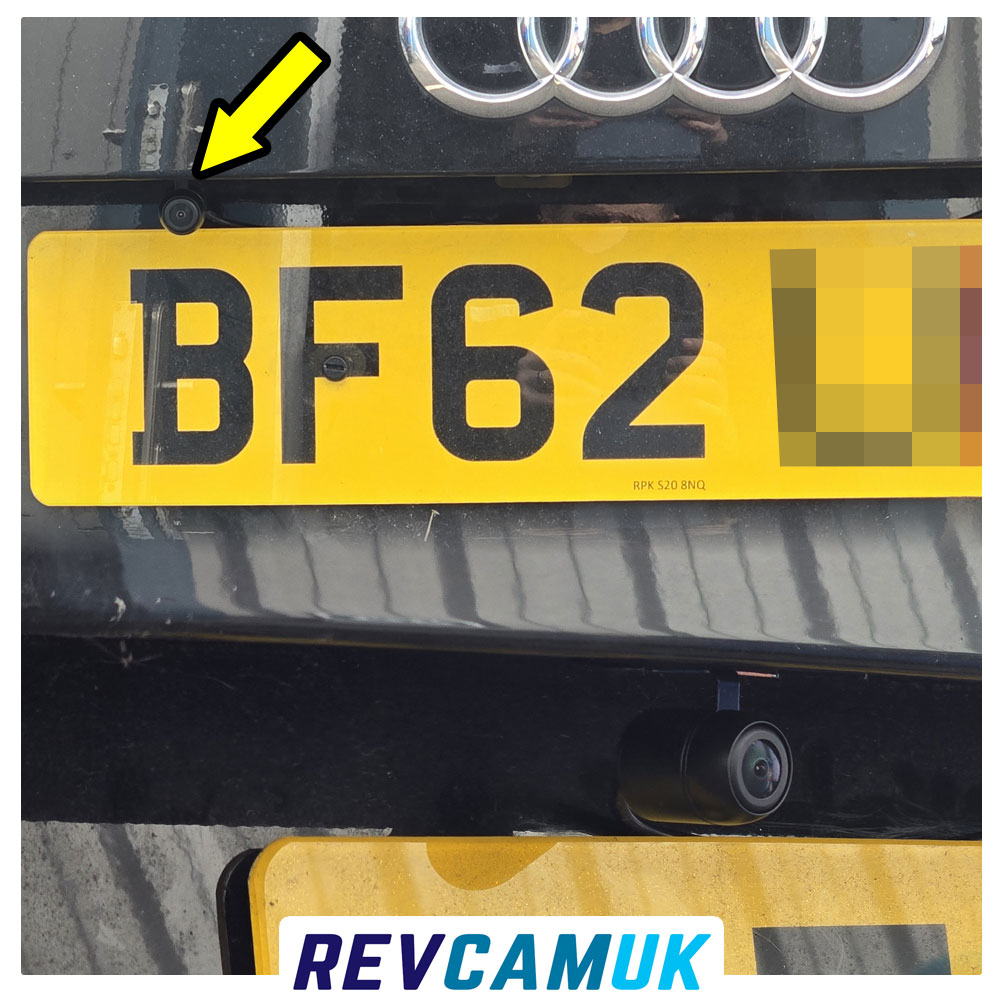

CAM085 “butterfly” bracket number plate reversing camera discreetly fitted behind a rear number plate

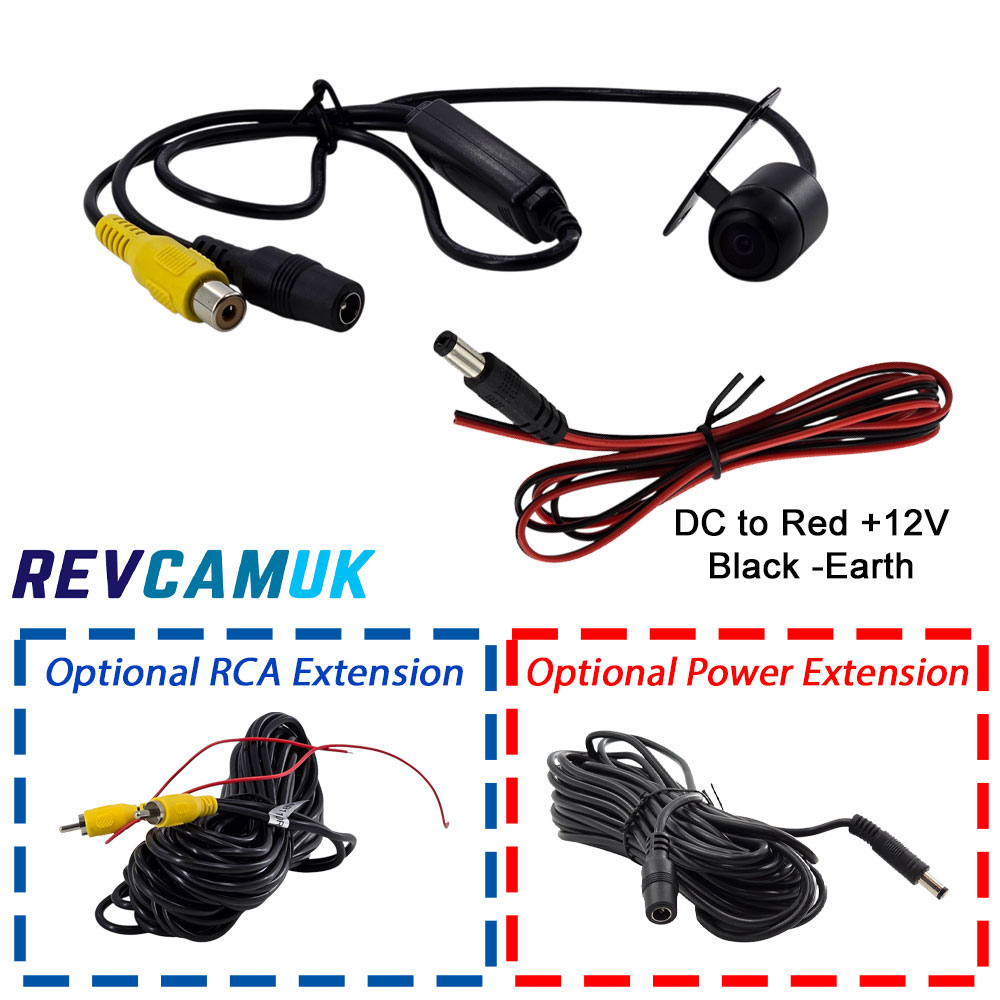

CAM085 butterfly number plate reversing camera contents image showing Sony CCD camera with DC power lead, RCA connection, voltage regulator and optional RCA and power extension cables

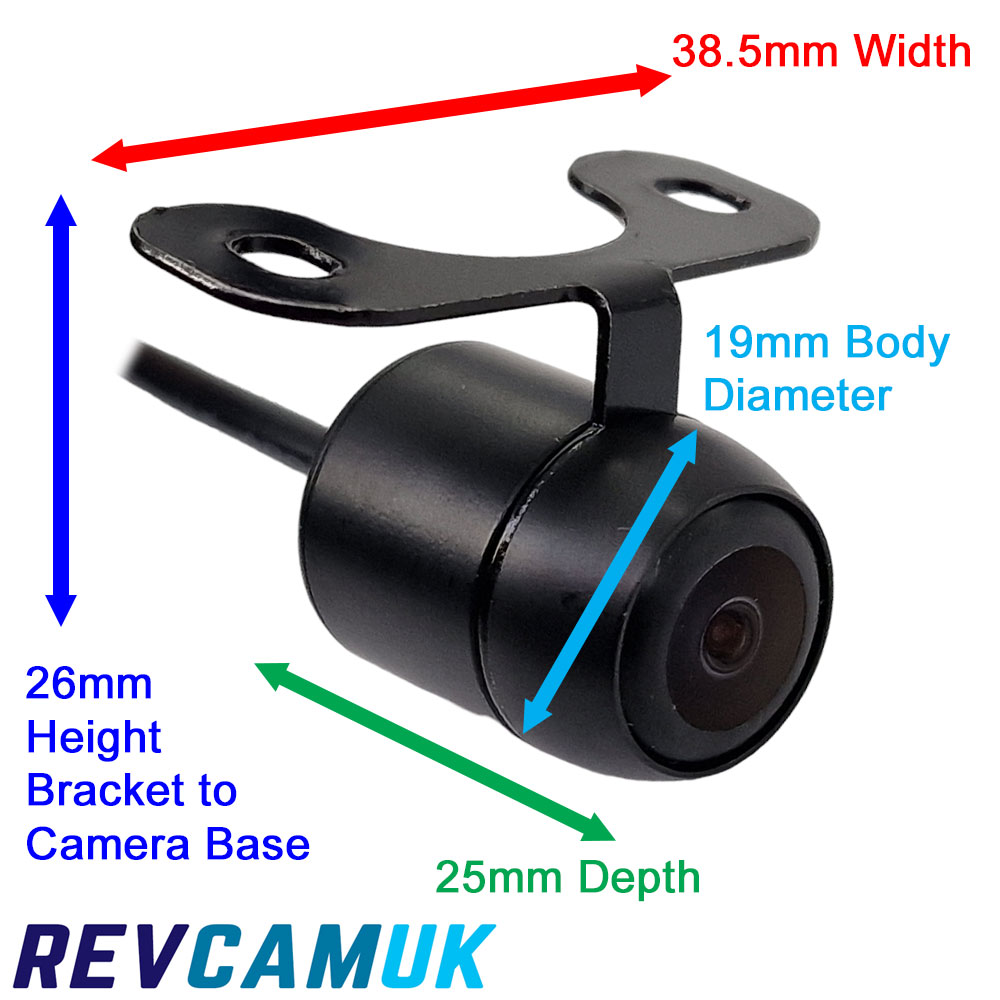

CAM085 number plate “butterfly” winged bracket reversing camera dimensions image showing 38.5 mm bracket width, 26 mm height from bracket to camera base, 25 mm camera depth and 19 mm body diameter.

Technical Specs

Image Sensor: 1/3" CCD Sony 639
Resolution:600 TVL
Pixels:752*582
Minimum Illumination:0.001 Lux
