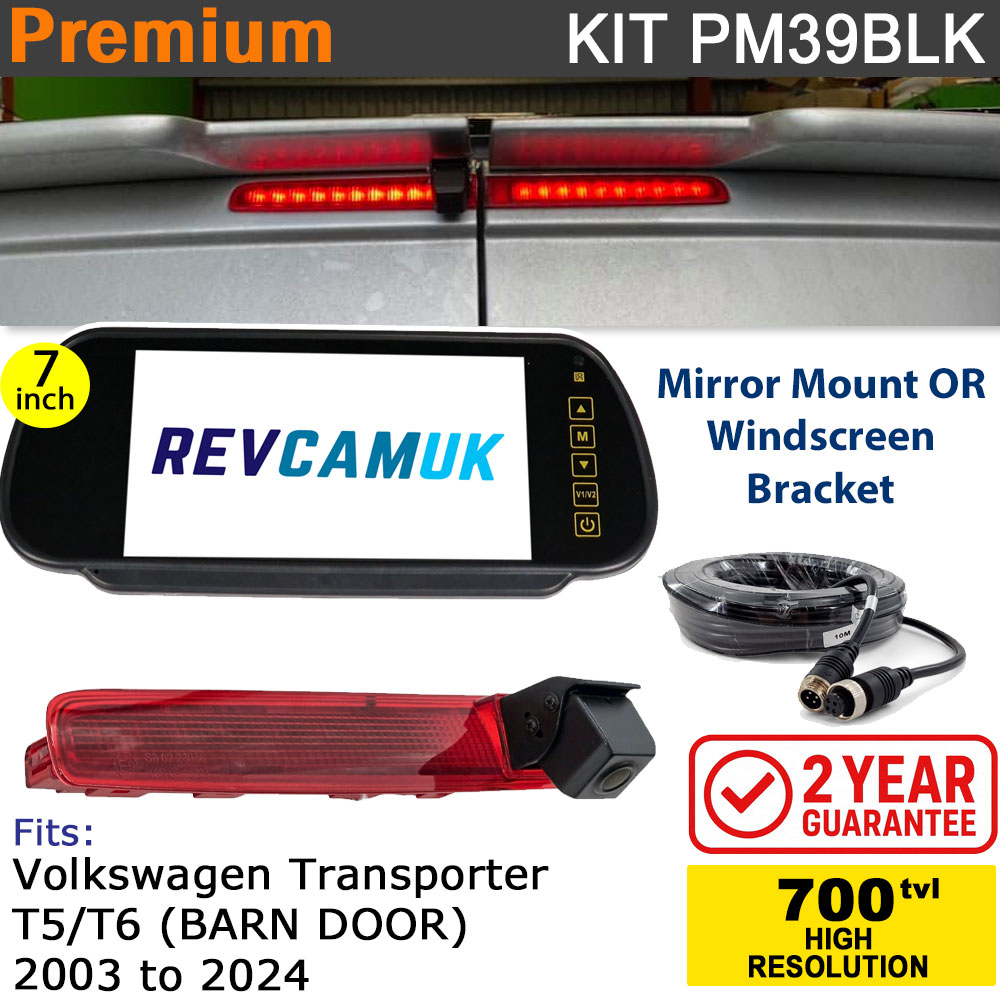

VW Volkswagen Transporter T5/T6 (2003+) (Barn Doors Version) Brake Light Reversing Camera kit with 7" Mirror Display - PM39BLK
Description
About the VW Transporter T5/T6 barndoor (double doors) brake light reversing camera kit with 7" mirror monitorBrake light reversing cameras have quickly become the most popular type of reversing camera system for vans. This particular camera kit is supplied with a 7 inch high resolution mirror monitor, designed to clip over your existing interior mirror, although we also have a swan neck bracket version available to fit existing stub - please double check photo image before ordering this option, as the monitor will be supplied without clips when ordered with bracket. What vehicle does this fit?VW Volkswagen Transporter T5/T6 2003+ BARNDOOR VERSION (we also tailgate version in other listings) Choice of kit power options
Easy-Fit Wiring
Image Sensor for CameraThis particular system uses the PC4089 1/3" Hi-Res CMOS image sensor (not to be confused with the older technology low res CMOS), this runs at 700TVL and gives a really crisp picture with a good colour replication. We use 4xglass composite lens instead of the cheaper 2xglass, 2xplastic lenses, which cloud/fade over time due to UV exposure. With our camera you can be assured of good performance and long term reliability. Monitor has Digital LCD Panel - Not Standard LCDOur monitor uses a Hi-Res digital panel LCD screen with an 800x480 pixel display. To complicate matters we have seen a difference in quality between 800x480 pixel panels. We only stock LCD panels that have the brightest backlights, and the best colour replication. This costs us approx. 50% more than we could buy the monitors for, however, the reliability, picture quality, our reputation in keeping our many return customers happy, means we are willing to pay the extra (you get what you pay for!). 2 Year GuaranteeWe supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty. Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts. Parts Tested in the UKThe parts of this kit will have been tested twice, once by the factory and once by us. We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part. Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past. This is why professional fitters love us. |
Detailed Images
Brake Light Reversing Camera Fitted to vw transporter with barn doors
Optional Swan neck bracket for mounting to existing stub (please check your vehicle before ordering)
Monitor Dimensions
Wiring Layout (monitor side) - clip-on mirror version shown, if using monitor with swan neck bracket the cables may looks slightly different
Choice of power options suchas lighter plug and piggyback fuse holder taps
Yes you can, the monitor powers the camera, this means you can choose to watch the camera at any point, you can drive with it "always on". It is worth noting that the camera faces downwards, so it may not be used as a rear view driving camera.
Our easy wire fuse tap options are new for 2023. We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses. The other side has a "piggyback" fuse holder aka fuse tap. You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download). The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit. On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).
Yes, absolutely. You can also choose to hard wire it at a later point. Some people order the lighter plug option simply to try it out before they wire it in permanently.
Yes it does. The camera outputs its own fixed guidelines (these can be turned off by snipping a small loop of wire that is next to the cameras connector). The monitor can also add guidelines itself, these will only be shown if you connect up the green reverse trigger wire on the monitor wiring. The advantage of using the monitors guideline function instead of the cameras is that you can adjust the position on the monitors guidelines (see the instructions tab for the downloadable PDF on how to do this).
Our guide to the menu system and monitor. Covers the adjustable guidelines that can be added when reverse gear is connected to the green trigger wire on monitor wiring harness.
Our fitting guide to installing our brake light reverse camera on to your VW Transporter T5 / T6 van with barn doors.
Monitor7” Diagonally Measured Colour LCD screen CameraImage Sensor : 1/3" colour Super CMOS |
