Volkswagen Crafter Brake Light Reversing Camera (1080P AHD) | CAM981-AHD

The CAM981-AHD Brake Light Reversing Camera is a clean, factory-style upgrade for the Volkswagen Crafter (2017–present). It mounts directly onto the existing OEM brake light unit, keeping the original light fully intact while adding a discreet, high-definition reversing camera. This design gives you a sharp, wide rear view without changing the vehicle’s appearance.

Please note: This 1080P AHD brake-light camera is only compatible with monitors that support an AHD video signal. It is not suitable for most factory radios or older CVBS-only displays. For the standard-definition CVBS version, please see our Standard CVBS brake-light reversing camera for Volkswagen Crafter.

Key features

• Adds a reversing camera to the existing brake light – The camera mounts directly to the original VW Crafter brake-light assembly using the supplied bracket and fixings.
• Straightforward installation – Includes all mounting hardware and clear step-by-step instructions for an OEM-quality fit.
• 1080P AHD image quality – Uses the C2399 CMOS PAL sensor for excellent clarity, natural colours and strong low-light performance.
• All-glass lens – Provides better long-term sharpness and colour accuracy compared with plastic lenses.
• 160° diagonal wide-angle view – Gives broad visibility when reversing, ideal for large panel vans and long-wheelbase Crafter models.
• IP68 waterproof housing – Proven to withstand the worst the British weather can throw at it.
• 4-pin aviation connector – Secure, vibration-resistant connection for aftermarket AHD monitors.
• Optional accessories – 4-pin → RCA adaptor and extension cables (10–15 m) available for extended installations.
• UK tested with 2-year warranty – Quality checked and supported in the UK for long-term reliability.

Vehicle fitment

AHD compatibility notice

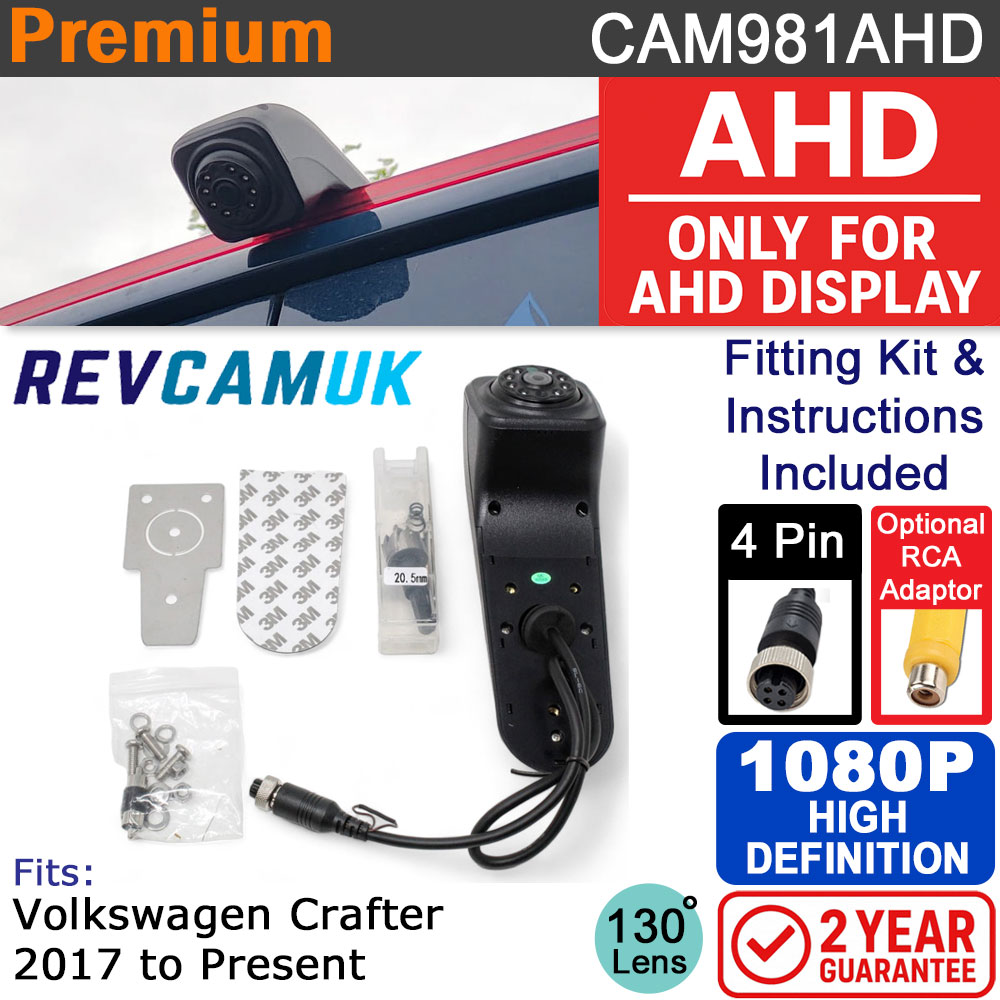

What’s in the box

• 1080P AHD brake-light mounting reversing camera (CAM981-AHD)
• Mounting bracket, fixings, template and step-by-step installation guide
• Optional 4-pin → RCA adaptor and extension cable (10–15 m, if selected)

Add a monitor and cable with one of our premium brake light reversing camera kits

If you would like a complete reversing camera kit for your Crafter, including a compatible monitor and cabling, please see the links below. Each kit includes this camera, a high-quality display, cabling and a 2-year guarantee.

• 7-inch Mirror Monitor + Reversing Camera Kit for VW Crafter (select AHD option from drop-down menu)
• 7-inch Dash Monitor + Reversing Camera Kit for VW Crafter (select AHD option from drop-down menu)
• 5-inch Dash Monitor + Reversing Camera Kit for VW Crafter (AHD option unavailable; still high quality)
