Fiat Ducato, Citroen Relay, Peugeot Boxer & Vauxhall Movano Brake Light Reversing Camera (1080P AHD) | CAM1723AHD

Availability 10 item(s) available
Weight 0.50 kg
Product Code: CAM1723AHD
Price: £110.00
VAT Included £18.33

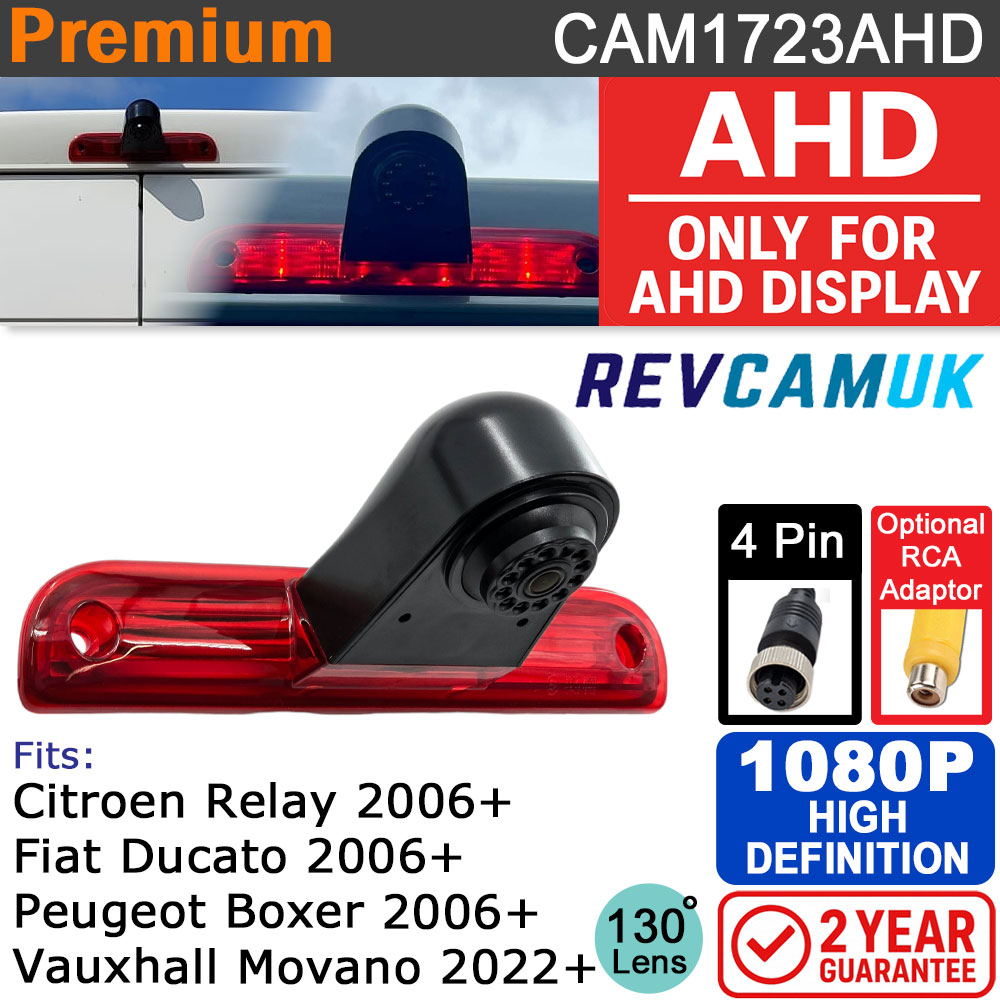

Fiat Ducato, Citroen Relay, Peugeot Boxer & Vauxhall Movano Brake Light Reversing Camera (1080P AHD) | CAM1723-AHD

This upgraded 1080P AHD version of our popular CAM1723 provides a detailed, high-definition image while maintaining a true OEM-style appearance. It replaces the upper brake light assembly on Fiat Ducato, Citroen Relay, Peugeot Boxer and Vauxhall Movano (2022 onwards), giving a factory-finish look and a clearer rear view when reversing or manoeuvring.

Key features

  • Factory-fit replacement – no drilling or modification required
  • C2399 CMOS PAL sensor for genuine 1080P AHD high definition
  • All-glass lens for a balanced, detailed image and strong light handling
  • 160° diagonal wide-angle view for maximum rear coverage
  • IP68 waterproof housing for all-weather reliability
  • Selectable on/off parking guidelines (loop wire)
  • Compatible with AHD monitors and AHD split-screen systems
  • Optional 4-pin → RCA adaptor for use with aftermarket displays
  • Optional 5 m – 15 m extension cables available
  • UK tested and backed by a 2-year warranty

Vehicle fitment

Compatible with the following vehicle models:

  • Citroen Relay (2006 – present)
  • Peugeot Boxer (2006 – present)
  • Fiat Ducato (2006 – present)
  • Vauxhall Movano (2022 – present)

AHD compatibility notice

Please note: This is a high-definition 1080P AHD camera. It must be used with a monitor or display that supports AHD video input. Standard definition (CVBS) screens will not display an image. AHD-compatible displays are still relatively uncommon, but if you need one, please see our AHD monitor category.

Specification snapshot

Camera type Brake-light integrated reversing camera
Image sensor C2399 CMOS (AHD 1080P, PAL)
Lens All-glass optics for consistent detail and colour balance
Viewing angle 160° diagonal ultra-wide
Video format AHD 1080P (PAL)
Guidelines Selectable on/off (loop wire)
Waterproof rating IP68 sealed housing
Connector 4-pin aviation female plug (camera end)
Cable length options Selectable 5 m – 15 m (optional)
Guarantee 2-year UK warranty

What’s in the box

  • 1080P AHD brake-light reversing camera (CAM1723-AHD)
  • Optional 4-pin → RCA adaptor and/or extension cable (5 – 15 m, if selected)

Add a monitor and cable with one of our premium brake light reversing camera kits

If you would like a complete reversing camera kit for your van, including a display, please check out our links below. The kits come with this camera, a quality monitor, cabling, and a 2 year guarantee.

Fitting the brake light camera

Fitting the brake light camera is very simple.  The brake light reversing camera re-uses your existing brake light strip.  Simply remove the existing brake light via the two securing cross head screws.  Gently release the three tabs on the top and bottom of the brake light to release the light strip.  Then transplant this in to the new brake light camera.  Re-screw this back to your vehicle with the two original screws.

See our video below for details about fitting the brake light camera
