Volkswagen Caddy Brake Light Reversing Camera 1080P AHD | CAM1900AHD ***

Availability 5 item(s) available
Weight 0.50 kg
Product Code: CAM1900AHD
Price: £110.00
VAT Included £18.33

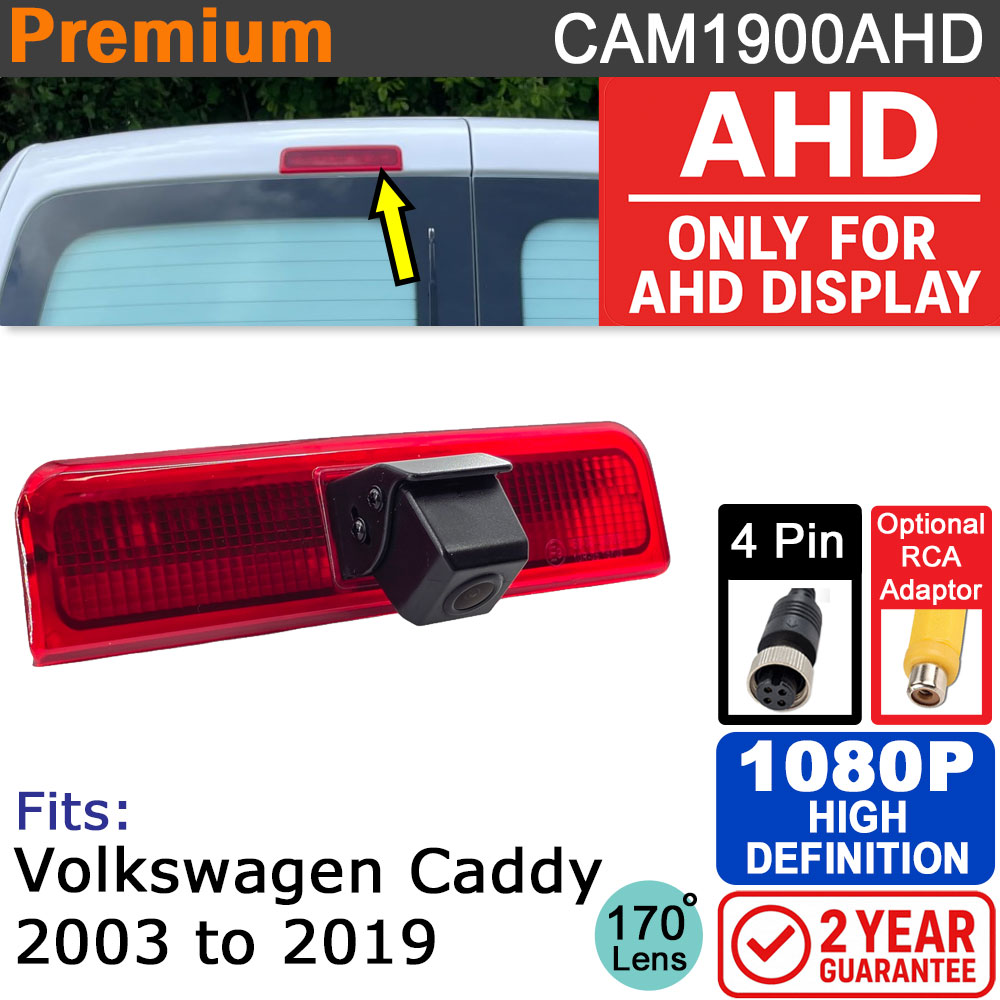

Volkswagen Caddy Brake Light Reversing Camera (1080P AHD) | CAM1900-AHD

The CAM1900-AHD Brake Light Reversing Camera is a factory-fit upgrade for the Volkswagen Caddy (2004 – 2020). It replaces the upper brake light with a high-definition 1080P AHD camera module, offering sharp, colour-accurate images through its C2399 sensor and all-glass lens. All fixings and a sealing gasket are supplied to ensure a secure, watertight installation using the original mounting points.

Key features

  • Direct replacement for the OEM brake light – no drilling required
  • 1080P AHD output using C2399 CMOS PAL image sensor
  • All-glass lens for natural colour reproduction and fine detail
  • 170° diagonal wide-angle view for comprehensive rear coverage
  • Selectable on/off parking guidelines (loop wire)
  • IP69K waterproof housing, proven to withstand the worst the British weather can throw at it
  • 4-pin aviation female connector for plug-and-play installation
  • Optional 4-pin → RCA adaptor and 5 m–15 m extension cables
  • Compatible with AHD and split-screen monitors
  • UK-tested and covered by a 2-year warranty

Vehicle fitment

Compatible with the following vehicle models:

  • Volkswagen Caddy (2004 – 2020)

Replaces the factory brake light and includes all fixings and installation instructions for a clean, OEM-style finish.

AHD compatibility notice

Please note: This is a high-definition 1080P AHD camera. It must be used with a monitor that supports AHD video input.
Standard-definition (CVBS) screens will not display an image.
AHD-compatible displays are still relatively uncommon, but if you need one, please see our AHD monitor category.

Specification snapshot

Camera type Brake-light integrated reversing camera
Image sensor C2399 CMOS (AHD 1080P, PAL)
Lens All-glass optics with 170° diagonal view
Night vision Relies on vehicle lighting – no infrared LEDs
Video format AHD 1080P (PAL)
Guidelines Selectable on/off (loop wire)
Waterproof rating IP69K sealed housing, proven to withstand the worst the British weather can throw at it
Connector 4-pin aviation female plug (camera end)
Cable length options Selectable 5 m – 15 m (optional)
Guarantee 2-year UK warranty

What’s in the box

  • 1080P AHD brake-light reversing camera (CAM1900-AHD)
  • Mounting fixings, sealing gasket and installation guide
  • Optional 4-pin → RCA adaptor and extension cable (5 – 15 m, if selected)

Add a monitor and cable with one of our premium brake light reversing camera kits

If you would like a complete reversing camera kit for your vehicle, including a display, please check out our links below. The kits come with this camera, a quality monitor, cabling, and a 2-year guarantee.
