Fiat Ducato / Citroen Relay / Peugeot Boxer / Vauxhall Movano Dual-View Brake Light Reversing and Rear-View Camera (1080P AHD) | CAM1723TWAHD


Availability 10 item(s) available
Weight 0.50 kg
Product Code: CAM1723TWAHD
Price: £175.00
VAT Included £29.17

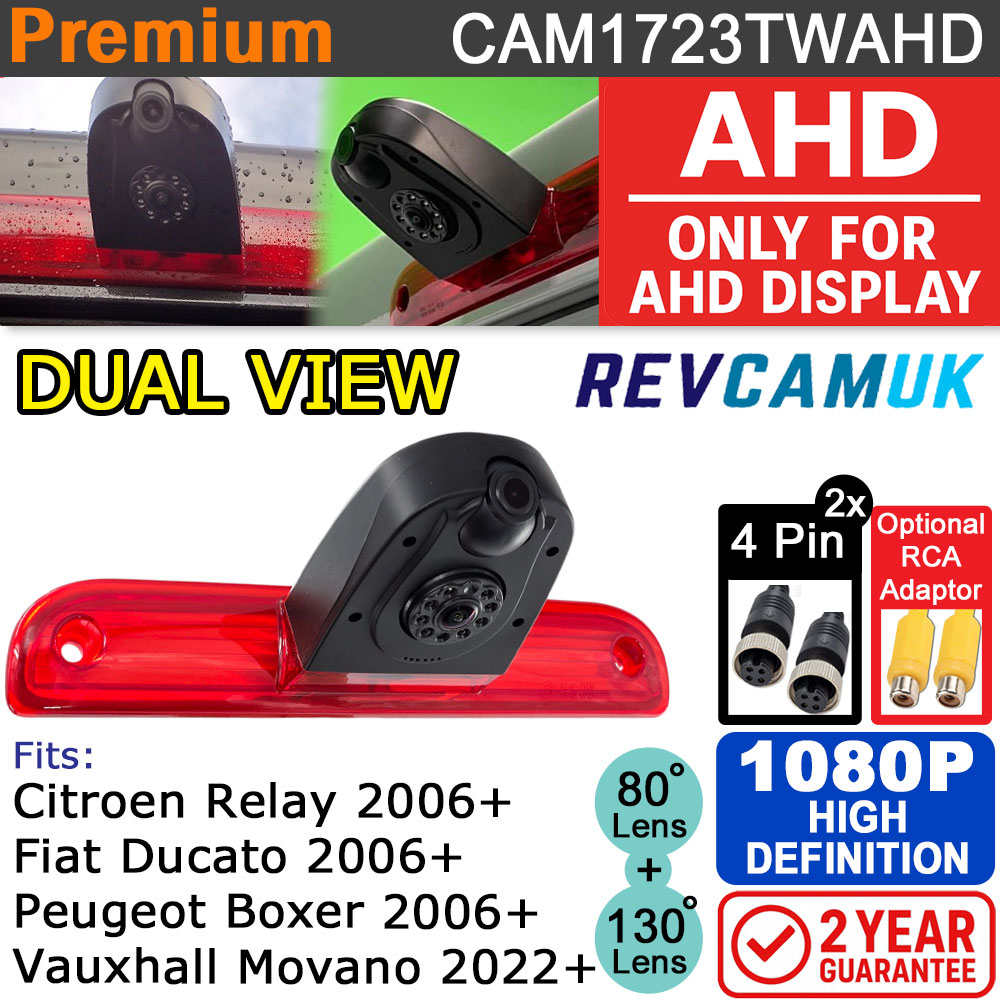

Fiat Ducato, Citroen Relay, Peugeot Boxer & Vauxhall Movano Dual-View Brake Light Reversing and Rear-View Camera (1080P AHD) | CAM1723TW-AHD

The CAM1723TW-AHD Dual-View Brake Light Camera provides both a detailed reversing image and a clear rear-view driving picture, making it useful throughout the entire journey rather than only when reversing. It replaces the upper brake light on Fiat Ducato, Citroen Relay, Peugeot Boxer and Vauxhall Movano (2022 onwards), housing two separate cameras: one aimed downwards for reversing and one angled horizontally for constant rear-view monitoring. The result is better all-round visibility, improved safety, and an OEM-style finish that looks built-in from the factory.

Key features

  • Dual-view design – two cameras integrated into a single brake light unit
  • Reversing camera: 130° horizontal angle with infrared LEDs for night vision
  • Rear-view driving camera: 80° horizontal angle (no IR – for natural daytime colour)
  • Supplied with 10 m 7-pin main cable (removable if not required)
  • Includes 7-pin → 2 × 4-pin adaptor to link both cameras to compatible systems
  • 1080P AHD picture quality using C2399 CMOS PAL image sensors
  • All-glass lenses for accurate colour and long-term durability
  • Selectable on/off parking guidelines (loop wire)
  • IP68 waterproof housing for dependable year-round use
  • Compatible with AHD split-screen or dual-input monitors
  • Optional 4-pin → RCA adaptors and extension cables available (10 m – 15 m)
  • UK tested and backed by a 2-year warranty

Vehicle fitment

Compatible with the following vehicle models:

  • Citroen Relay (2006 – present)
  • Peugeot Boxer (2006 – present)
  • Fiat Ducato (2006 – present)
  • Vauxhall Movano (2022 – present)

AHD compatibility notice

Please note: This is a high-definition 1080P AHD camera set. It must be used with a monitor or display that supports AHD video input. Standard-definition (CVBS) screens will not display an image. AHD-compatible displays are still relatively uncommon, but if you need one, please see our AHD monitor category.

Specification snapshot

Camera type Dual-view brake-light reversing & rear-view camera
Image sensors Two × C2399 CMOS (AHD 1080P, PAL)
Lens types All-glass optics (130° reversing / 80° rear-view)
Night vision Infrared LEDs on reversing camera only – none on rear-view lens
Video format AHD 1080P (PAL)
Guidelines Selectable on/off (loop wire)
Waterproof rating IP68 sealed housing
Connector 7-pin aviation plug (with included 7-pin → 2 × 4-pin adaptor)
Cable length 10 m (main 7-pin cable included, removable option)
Guarantee 2-year UK warranty

What’s in the box

  • 1080P AHD Dual-View brake-light camera (CAM1723TW-AHD)
  • 10 m 7-pin camera cable (default, removable option)
  • 7-pin → 2 × 4-pin adaptor (included)
  • Optional 4-pin → RCA adaptors and/or extension cables (10 m – 15 m, if selected)
