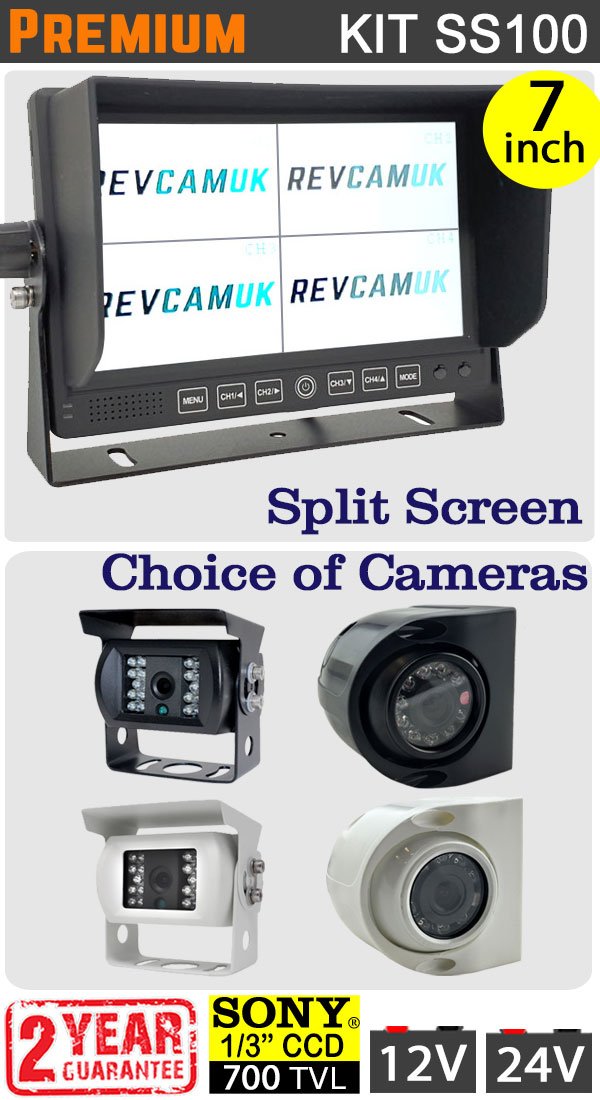

Introducing the 7 inch quad split screen monitor with options of bracket reverse / rear view cameras and side view blind spot cameras for Agricultural, HGV, LGV, DVS, FORS

• Change the drop down menus to order the required number of cameras, type/colour of camera, and cable lengths. If you would like a combination not on the list please contact us.
• The monitor can accept up to 4 cameras and arrange this in various configurations using a split screen arrangement.
• The monitor uses a 7 inch high resolution 800x480 pixel LCD panel.
• The camera options all use our premium specification reversing / side cameras for excellent vision day or night.
• The cameras and cables all have discounts built in based on buying the monitor at the same time.

How to choose the cameras and cables you want

You will notice that there are 8 drop down menus.  The default selection is 2x Black Bracket, 2x Black Side Camera, 2x15M cables, and 2x5M cables. These can be changed individually by selecting the drop down menu and choosing the camera type / cable length of your choice.  If you only wish to have 2 or 3 cameras, then please select "none" on the camera 3/camera 4 type/cable length menus - this will remove the cost of these parts.

If there are any cameras you would like that are not on the selection, please contact us and we will prepare a quote for you.

Monitor has Digital LCD Panel - Not Standard LCD

This monitor uses a top-spec Hi-Res digital panel LCD screen with an 800x480 pixel display. Two monitors with the same number of pixels can have a huge picture quality difference. Rest assure that we only stock LCD panels that have the brightest backlights, and the best colour replication. This costs us approx. 50% more than we could buy the monitors for. However, because of the picture quality, reliability, and many happy repeat customers, we are willing to pay the extra - you get what you pay for!

Split Screen Modes

You can arrange the camera to display in various arrangements on screen by using the mode button on the monitor.  Please see the image below to see the possible arrangements that you can set.

Easy-Fit Wiring

• We have been using this type of cabling since 2007, and it has performed perfectly in all of this time. It is called the 4 pin aviation cable, and uses what is known as a 4 pin GX12 connector.
• This type of connector is very durable, and can be kept outside exposed to rain and freezing temperatures.
• It makes fitting easier, and avoids CANBUS issues due to the monitor powering the camera.
• It keeps contacts clean and dry, plus prevents them from accidental separation.
• It has become the industry standard connector, which means you aren't forced to buy future cameras/cables/upgrades from one retailer - as parts are interchangeable between numerous suppliers (although we are confident you will be impressed enough with us that you will choose us for any future upgrades/spare parts).
• All of our aviation extension cables are high quality, with the inner cores consisting of pure copper. We do not use the cheaper CCA (Copper Coated Aluminium) or CCS (Copper Coated Steel) cables, because they are more prone to failure/degradation over time.

Anti-Corrosion Stainless Steel Camera Bracket

The camera has a stainless steel bracket, which is shown to last a very long time without corrosion, unlike mild steel we have seen from most other retailers, which tends to rust in a matter of a few months.
