Black Reversing or Rear View Camera + Polished S/Steel Bracket | Sony AHD 1080P | 4 pin connector | CAM111BAHD

Availability 48 item(s) available
Weight 0.50 kg
Product Code: CAM111B-AHD
Price: £89.00
VAT Included £14.83

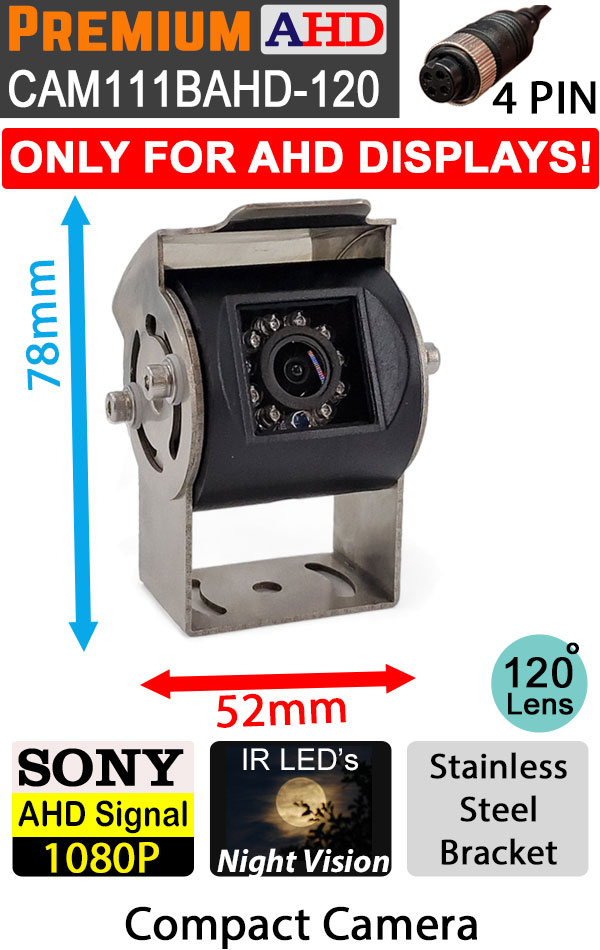

Sony 1080P AHD Signal Compact Black Reversing Camera with Polished Stainless Steel Bracket

This compact and high-quality bracket camera combines a polished stainless steel mount with a black body camera head. It uses a Sony 1/2.9″ AHD image sensor to deliver full HD 1080P (1920×1080) resolution, making it ideal for detailed reversing or rear-view image requirements.

The bracket style mount offers a sleek, corrosion-resistant stainless steel finish and allows flexible mounting across vans, motorhomes, cars and HGVs. The narrow angle optics (approx 45°) provide a more realistic distance perception when viewing following traffic rather than an exaggerated “fish-eye” effect, making it particularly well suited to ongoing rear-view monitoring as well as reversing. Its IP68 waterproof housing ensures reliable performance even in British wet weather conditions.

AHD compatibility notice

Please note: This is a high-definition 1080P AHD camera. It must be used with a monitor or display that supports AHD video input.
Standard definition (CVBS) screens will not display an image.
If you need a suitable display, please see our AHD monitor category.

If you are unsure whether your monitor or display supports 1080P AHD input, please feel free to contact us for advice before ordering.

Key features

  • Polished stainless steel bracket with corrosion resistance
  • Sony 1/2.9″ AHD sensor producing full HD resolution (1920×1080)
  • Approx. 45° viewing angle for more accurate distance perception rather than ultra-wide view
  • Optional IR LED-equipped version or no-IR version to reduce night-mode switching artefacts (rear view option only)
  • IP68 waterproof housing, proven to withstand the worst the British weather can throw at it
  • Compact bracket design suitable for vans, motorhomes, HGVs and cars
  • 4-pin aviation connector with optional RCA adaptor and extension cables (1–20 m)
  • Designed for 1080P AHD monitors only (not standard CVBS monitors)

Specification snapshot

Camera type Compact bracket reversing camera with stainless steel mount
Image sensor Sony 1/2.9″ AHD (1080P, 1920×1080)
Resolution 1920 × 1080 (1080P)
Viewing angle Approx. 45°
Night vision Optional IR LEDs (select when ordering)
Video format 1080P AHD (PAL)
Waterproof rating IP68 housing, proven to withstand the worst the British weather can throw at it
Connector 4-pin aviation connector (camera end)
Cable options Optional 1–20 m 4-pin extension cables
Guarantee 2-year UK warranty

What’s in the box

  • Compact bracket 1080P AHD camera with stainless steel mount
  • 4-pin connector tail (camera end)
  • Optional 4-pin → RCA adaptor (if selected)
  • Optional extension cable (length chosen at checkout)

Information correct as of 17:29, Thursday, November 20, 2025
