9" Heavy Duty Dash Display + Numberplate Reversing Camera Kit (option of 600TVL or 1080P AHD camera) - PM95A

Availability 40 item(s) available
Weight 2.50 kg
Product Code: PM95A
Price: £190.00
VAT Included £31.67

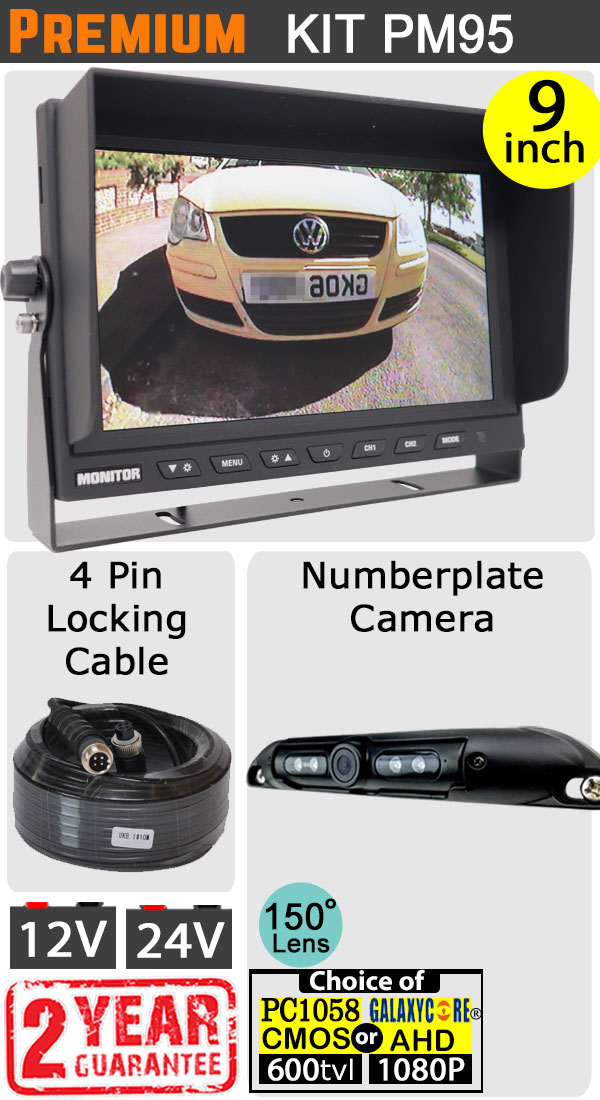

PM95A Numberplate Reversing Camera Kit with 9-inch Dash Monitor

The PM95A kit combines a 9-inch heavy-duty dash-mounted display with a premium numberplate-style reversing camera. Choose between the 600TVL CMOS version or the upgraded GalaxyCore AHD 1080P option for high definition, improved colours, and enhanced low-light performance. Built with IP69K waterproofing, aspheric wide-angle lens, and tested reliability, this kit is designed for cars, vans, and motorhomes needing a discreet reversing solution.

Key features

  • 9-inch dash monitor with clear LCD display (IPS panel on AHD upgrade)
  • Numberplate camera with discreet “cigar” design
  • Choice of 600TVL CMOS or GalaxyCore 1080P AHD upgrade
  • 150° wide-angle lens with premium aspheric optics (reduced fish-eye effect)
  • IP69K waterproof rating – the highest possible for durability
  • 12–24 V DC power input with built-in over-voltage protection
  • Durable 4-pin aviation connectors for secure, weather-resistant cabling
  • Optional lighter plug or fuse tap for easy installation
  • UK tested and supported, backed by a 2-year guarantee

More about this kit

Camera options: The 600TVL CMOS sensor delivers clear images for everyday reversing, while the GalaxyCore 1080P AHD upgrade boosts resolution by 60%, with an IPS panel display, improved dynamic range, and richer colours.

Lens design: Fitted with a 150° aspheric wide-angle lens, this camera reduces the “fish bowl” distortion common on cheaper cameras while giving maximum coverage for safer parking.

Waterproof reliability: Numberplate cameras are often prone to leaking, but this factory’s mechanical seal design has been proven over years of supply with no failures. Rated IP69K, it is one of the most robust reversing cameras available.

Power options: Supplied with a standard hardwire lead. Optional lighter plug or fuse taps (standard, mini, or micro blade) are available for fast installation. Fuse taps include a pre-crimped 200 cm lead with a chassis earth terminal.

4-pin aviation cabling: GX12 connectors provide secure and weatherproof connections, avoiding CANBUS issues and maintaining signal quality on long runs. Pure copper cores ensure reliability compared to cheaper CCA or CCS alternatives.

Specification snapshot

Monitor 9-inch LCD dash display (IPS panel on AHD upgrade)
Camera Numberplate style reversing camera
Camera sensor 600TVL CMOS (standard) or GalaxyCore 1080P AHD (upgrade)
Viewing angle 150° wide-angle, aspheric lens
Weatherproofing IP69K rated – highest waterproof standard
Power 12–24 V DC with over-voltage protection up to 32 V
Connection 4-pin aviation cable
Guarantee 2-year UK warranty and lifetime support

What’s in the box

  • 9-inch dash monitor with U-shape mounting bracket
  • Numberplate reversing camera
  • Main harness and 4-pin camera cable (12.5 m standard length)
  • Standard hardwire lead, optional lighter plug or fuse taps
  • Optional additional monitor bracket if selected

Cable length guide

  • 5 m: cars and short vehicles
  • 10 m: medium vans (around 6 m long)
  • 12.5 m: most vehicles up to 8.5 m (typical motorhomes)
  • 15 m: larger vehicles up to 10–11 m (rigid lorries, small coaches)
  • 20 m: very long vehicles (super long motorhomes, coaches, HGVs)

Supplied with an all in one 4-pin camera extension lead – choose your length at order.
