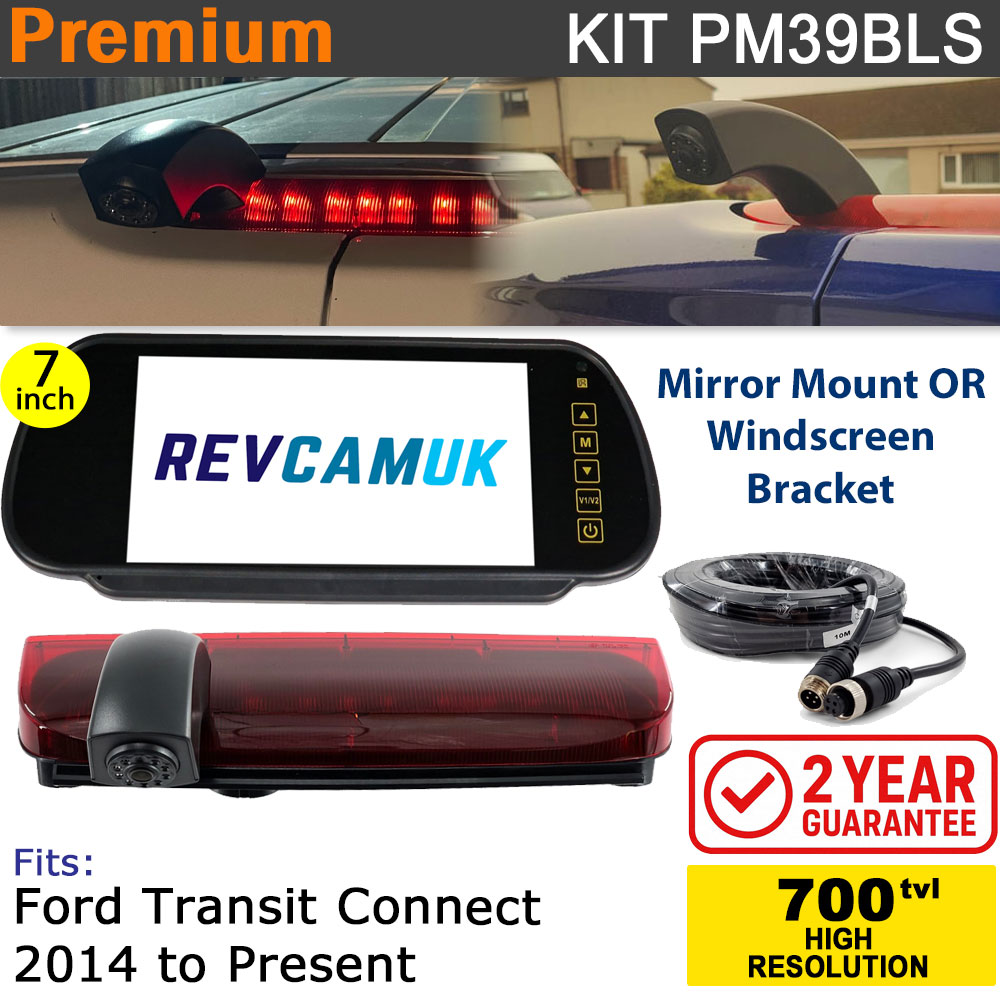

Ford Transit Connect Reversing Camera Kit with 7" Mirror Monitor

• Brake light reversing camera to fit Ford Transit Connect vans built between 2013 and present.
• 7 inch rear view mirror monitor display, with options to either clip over existing mirror, or attach directly to the windscreen fitment.
• Swan neck brackets are selectable depending on the metal windscreen fitment/button that is present on your van.
• If you have nothing present, we can supply a swan neck bracket that allows you to add a fitting/button (with loctite 319 glue).
• 2 Year Guarantee with the specialists - Reversing Cameras UK Ltd.

What vehicle does this fit?

Ford Transit Connect 2013-Present

Mirror Monitor Mounting Options

We stock a number of different mounting options for the mirror monitor, depending on what you currently have fitted to your van. See below for a description of the mounting options for the monitor display:

Clip over original mirror option (Default)

This type of mirror monitor has spring loaded clips on the rear, instead of screw holes for our swan neck brackets to fit.  Ideal if you have a van that already has an interior mirror fitted.

ACCMB2 Option - Fit to OEM Ford windscreen button

This is the most commonly seen windscreen button fitted to Ford Transit Connects. Selecting this option will mean your monitor is changed to a type that accepts windscreen mount swan neck brackets, and the bracket below will be provided in the kit.

ACCMB2 + Button + Glue - Adds a new Ford windscreen button to vans without one

If you have no metal windscreen button to attach our bracket to, then you can add your own. If for some reason you are ordering without having the oppurtunity to check if you have an existing metal plate present or not e.g. present for someone or are a fitter, this option will cover all scenarios as the bracket is the same as the one that fits the OEM plate/button. This option provides the Ford windscreen stalk, plus the Ford windscreen button, as well as the Loctite 319 glue.  Please see our instructions on how to glue a mirror button to the windscreen.  Download our PDF fitting instructions for fitting the windscreen button with Loctite 319 mirror button adhesive.

Choice of kit power options

• On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
• The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
• For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring/fuse tap.
• Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to "piggyback" off an existing circuit from your fuse box. The most common size fuse found in modern vehicles is the mini blade (size = 10.9mm wide x 16.4mm tall), older vehicles are likely to have the standard blade (size = 19.1mm wide x 18.8mm tall). Download and read our Fuse Tap installation instructions PDF for more information.
• Our fuse taps were designed by us, they have a 200cm lead that connects directly to the monitor socket with no soldering / crimping required. There is a black wire with an earth terminal attached - designed to fix to a chassis bolt/screw.  This earth wire/terminal can be separated away from the red wire to enable you to find the most convenient ground/earth (although often this is next to the fuse box).

2 Year Guarantee

We supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty.  Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts.

Parts Tested in the UK

The parts of this kit will have been tested twice, once by the factory and once by us.  We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part.  Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past.  This is why professional fitters love us.
