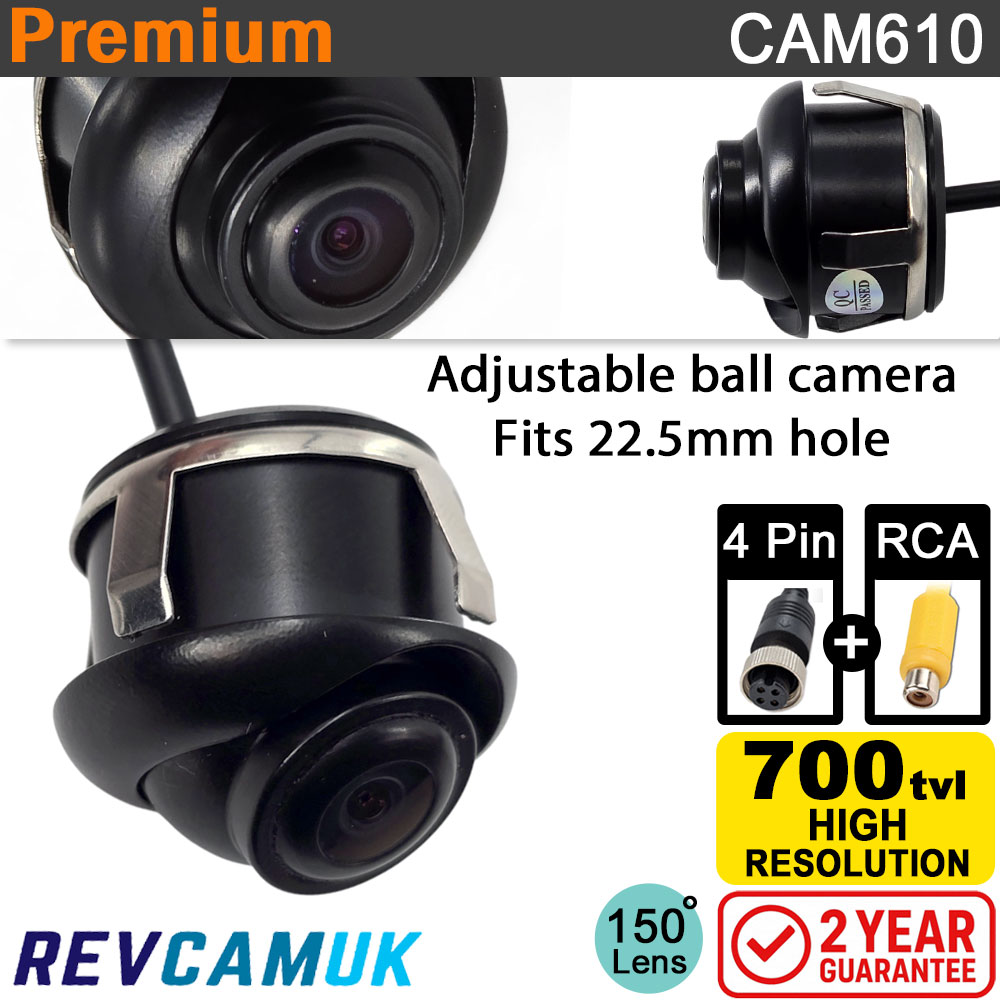

Adjustable Flush Fit Ball/Bullet Reversing Camera - CAM610

Black mini adjustable ball reversing camera, fitted with a vertical flip function so you can mount the camera up high on a vertical rear wall or low down on the number plate light trim. Supplied with both a 4 Pin connector and RCA connector wiring. High-resolution image sensor with a wide field of view. Simply drill a hole with the supplied 22.5mm holesaw and push the camera into place until the spring clips lock. Guideline function can be turned ON or OFF.

Small Black Discreet Reverse Camera - This camera is very small and discreet, which makes it hard to spot once installed.

Great Image Quality - The camera has a high-quality PC1058 image sensor fitted, which produces a 700TVL high-resolution image. Check out our photos of the camera outputting its image to a monitor (sold separately).

Wide Viewing Angle - With a 150 degree lens fitted, this camera gives you a lovely wide field of view to help avoid obstacles around the rear of your vehicle.

6G Lens - Fitted with 6x glass layers, including one coated film filter that only allows 380-650nm visible light to pass (the same spectrum as the human eye). This reduces interference from other wavelengths such as UV and IR light, and helps prevent damaging UV rays from affecting the image sensor. This all means that you get great colour replication and a clear image.

Vertical Flip Function allows mounting to Rear Wall OR above Number Plate - We had this camera produced with a function loop that connects into a jumper on the main camera board to tell it whether you plan to mount the camera against a rear wall, or hanging underneath the number plate light trim. For fitting to the rear wall simply unplug the jumper cap on the white wire loop (see our images). If you are currently watching the camera whilst removing the cap, the change won’t take effect until the system has been power cycled (turned off and back on).

Static Guideline Function ON/OFF - As standard the guidelines are turned ON. To remove them, unplug the jumper cap on the green wire loop (see images). If you are currently watching the camera whilst removing the cap, the change won’t take effect until the system has been power cycled (turned off and back on).

4 Pin + RCA Connector Wiring Supplied - This camera has a small connector to help get through the hole drilled for the bolt that the wire passes through. This then connects into one of two wiring looms. The first is a 4 pin screw aviation type. The second is an RCA phono connector type.

Increased Reversing Safety - A significant proportion of vehicle accidents in the UK occur when reversing, and this compact camera will help to reduce blind spots and help to avoid incidents.
