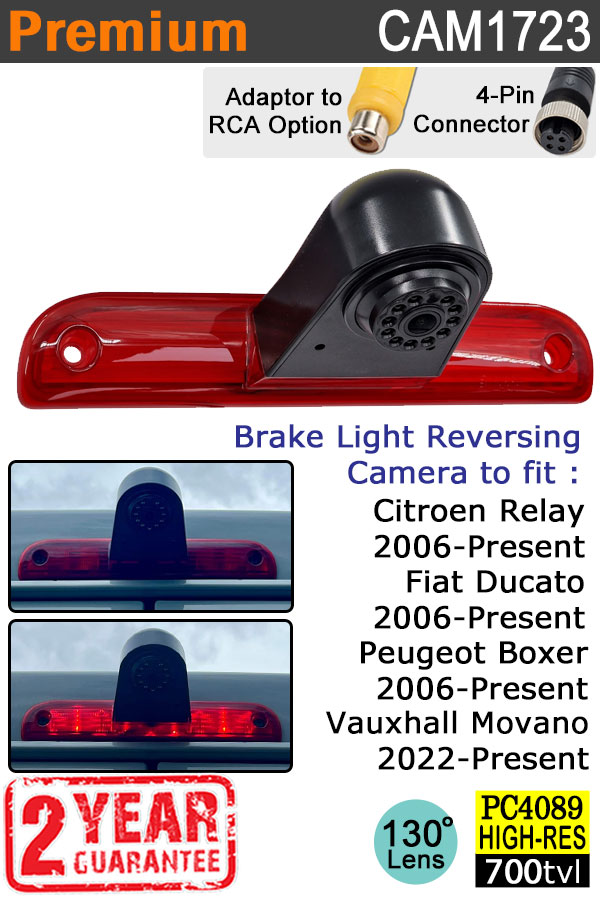

Fiat Ducato, Citroen Relay, Peugeot Boxer & Vauxhall Movano Brake Light Reversing Camera (CVBS 700 TVL) | CAM1723

This CVBS version of our popular CAM1723 is designed as a direct replacement for the upper brake light assembly on Fiat Ducato, Citroen Relay, Peugeot Boxer (2006–present) and later Vauxhall Movano models (2022+). It keeps a proper OEM-style appearance so the rear of the van still looks factory, while adding a clear and reliable reversing view that works with the vast majority of aftermarket systems.

The camera uses our long-proven PC4089 image sensor, paired with a high quality all glass composite lens, producing a high-resolution 700 TVL CVBS image with good colour and contrast. We’ve used this sensor for many years because it gives great performance and has proven itself to be reliable. The 160° diagonal viewing angle offers great rear coverage for parking, and the IP68 waterproof rating keeps the camera protected from the Great British weather.

Key features

Tidy factory look – Designed to sit exactly where the original high-level brake light fits, keeping a neat factory-fitted appearance with no add-on brackets or external boxes.

Easy installation using original mounting points – The camera re-uses the vehicle’s original fixing points, making installation straightforward with no drilling or irreversible modifications required.

High-Resolution CVBS (NTSC) image using upgraded PC4089 image sensor – Outputs a standard CVBS NTSC video signal, so it works with the vast majority of aftermarket reversing camera monitors, dash displays and head units. The higher-grade PC4089 sensor delivers a stable 700 TVL picture with bright, vibrant colours and good contrast.

High-quality all-glass composite lens – Uses a proper all-glass composite lens rather than plastic. It holds its clarity over time and avoids the UV sun-fade issues we see far too often with cheaper alternatives.

160° diagonal wide viewing angle – Gives a wide, usable view behind the vehicle to help spot obstacles, posts and people when reversing.

IP68 waterproof construction – IP68 waterproof housing, proven to withstand the worst the British weather can throw at it, whether the van is parked up or working every day.

Optional 4-pin to RCA adaptor – Available as an option for connecting to aftermarket head units or displays that use standard RCA/phono video inputs.

Optional extension cables – 5 m to 15 m 4-pin aviation extension cables are available to suit everything from short panel vans through to longer motorhome conversions.

UK tested and supplied with a 2-year Revcamuk guarantee – With almost 20 years in the reversing camera industry, we’ve worked with a lot of factories. These brake light cameras come from one of the best manufacturers we use and are fully supported with our 2-year Revcamuk guarantee. If a non-user-damage fault develops within two years, we’ll replace the camera to keep you reversing safely.

Vehicle fitment

What’s in the box

• CVBS brake light reversing camera (CAM1723)
• Optional 4-pin → RCA adaptor and/or extension cable (5–15 m, if selected)

Fitting the brake light camera

Fitting the brake light camera is straightforward. Remove the original brake light using the two securing cross-head screws, gently release the brake light strip from the housing and transfer it into the new camera housing. Refit the assembly using the original screws.

See the video below for a step-by-step fitting guide

Add a monitor and cable with one of our premium brake light reversing camera kits

If you would like a complete reversing camera kit for your van, including a display, the kits below pair this brake light camera with a suitable monitor and cabling, all backed by our 2-year guarantee.

• With a 7-inch Mirror Monitor Kit for Fiat Ducato, Citroen Relay, Peugeot Boxer & Vauxhall Movano
• With a 7-inch Dash Monitor Kit for Fiat Ducato, Citroen Relay, Peugeot Boxer & Vauxhall Movano
• With a 5-inch Dash Monitor Kit for Fiat Ducato, Citroen Relay, Peugeot Boxer & Vauxhall Movano
