Ford Transit Custom Dual-View Brake Light Reversing & Rear-View Camera – Bulb Version (1080P AHD) | CAM007FTC BULB TW-AHD

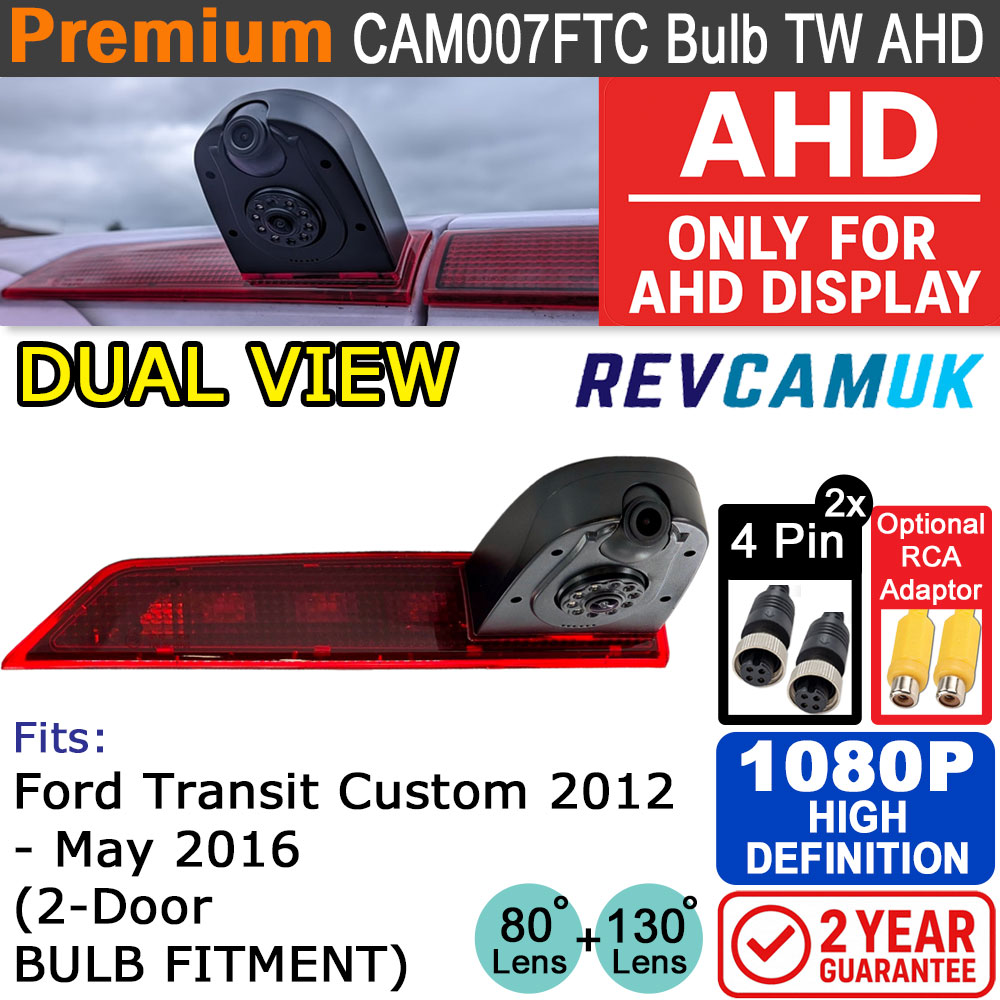

The CAM007FTC BULB TW-AHD Dual-View Brake Light Camera is designed for Ford Transit Custom vans from 2012 to approximately May 2016 that use the earlier bulb-type brake light. It replaces the original upper brake light assembly and integrates two separate cameras: one aimed downward for reversing and one set horizontally for clear rear-view driving visibility.

This AHD version uses two C2399 1080P sensors for significantly sharper detail than the older CVBS models. If your van has the later LED brake-light version (May 2016–2024), please see our LED version instead.

Please note: This 1080P AHD twin-lens camera for the Ford Transit Custom is only compatible with AHD-compatible monitors and will not work with older CVBS-only screens. If unsure, you may prefer the standard CVBS version here:
Standard CVBS Dual-View Brake Light Camera for Ford Transit Custom (Bulb Version).

Key features

Factory-fit replacement for bulb-type brake lights – Designed specifically for 2012–May 2016 Transit Custom models using the earlier bulb-based centre brake light assembly.

Dual-view system – Two independent cameras in the same brake-light housing: a wide reversing camera and a dedicated rear-view driving camera.

Reversing camera (downward): 130° horizontal angle with infrared LEDs for low-light performance.

Rear-view driving camera (horizontal): 80° horizontal angle with no infrared, giving a natural daytime rear perspective without glare or bloom.

1080P AHD image quality – Each lens uses a C2399 CMOS 1080P sensor for crisp detail and improved colour accuracy.

All-glass lenses – Provide long-term clarity and better performance in harsh temperatures compared with plastic lenses.

IP68 waterproof housing – Sealed unit designed to withstand all UK weather conditions.

Supplied with 7-pin → dual 4-pin adaptor – Allows connection to monitors supporting twin inputs or split-screen layouts.

Optional extension cables – 10 m and 15 m lengths available for longer installations.

UK tested and supported – Fully checked and supplied with a 2-year warranty.

Vehicle fitment

AHD compatibility notice

What’s in the box

• 1080P AHD Dual-View brake-light camera (CAM007FTC BULB TW-AHD)
• 7-pin main connector
• 7-pin → 2 × 4-pin adaptor
• Optional 4-pin → RCA adaptors and/or extension cables (10–15 m, if selected)

Add a monitor and cable with one of our premium brake light reversing camera kits

If you'd like a complete kit including a display, consider our full Transit Custom systems below. These kits include the camera, monitor, cabling, instructions, and a 2-year guarantee.

• With a 7-inch Mirror Monitor Kit for Ford Transit Custom (select Bulb/LED version + AHD option)
• With a 7-inch Dash Monitor Kit for Ford Transit Custom (select Bulb/LED version + AHD option)
• With a 5-inch Dash Monitor Kit for Ford Transit Custom (AHD option unavailable; still high-quality image)
