Ford Transit Custom Brake Light Reversing Camera 1080P AHD (Bulb Type - Pre May 2016) | CAM007FTC Bulb AHD

Availability 10 item(s) available
Weight 0.50 kg
Product Code: CAM007FTC Bulb AHD
Price: £110.00
VAT Included £18.33

Ford Transit Custom Brake Light Reversing Camera (1080P AHD) | CAM007FTC Bulb AHD

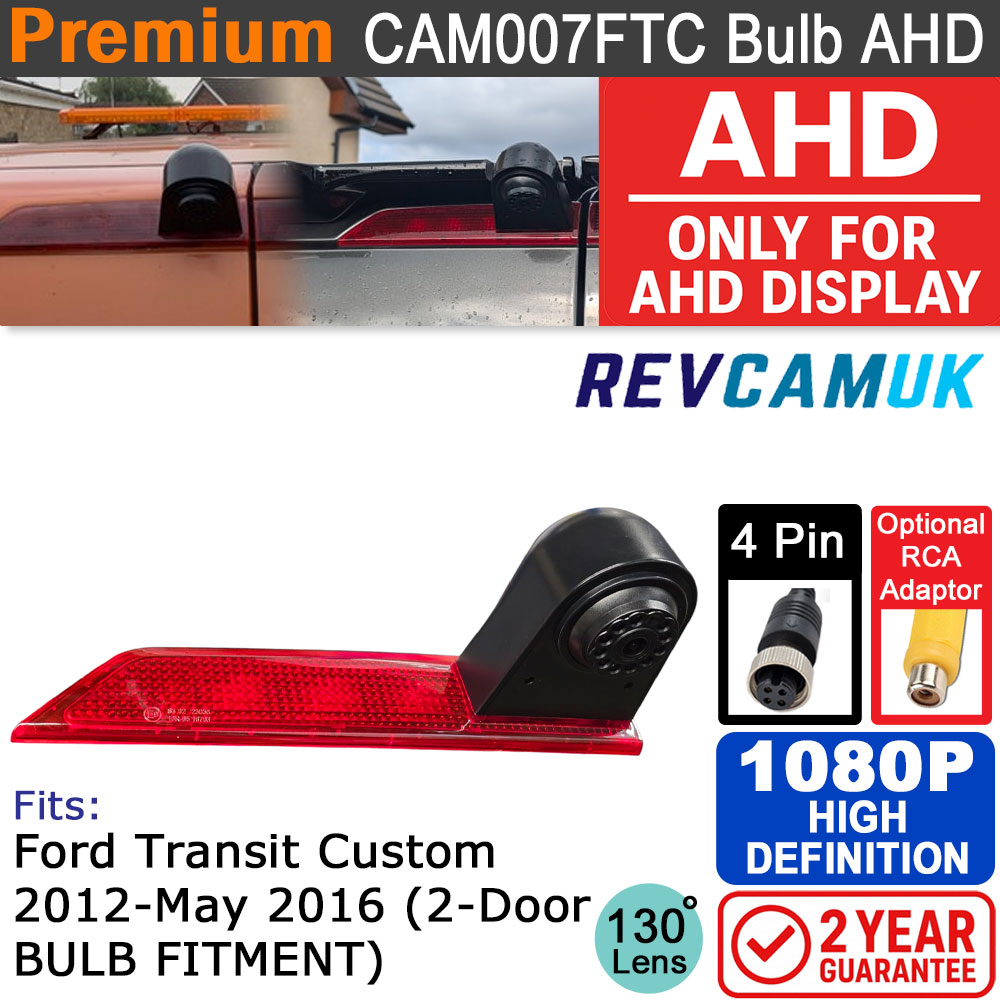

The CAM007FTC Bulb AHD Brake Light Reversing Camera is a direct-fit replacement for the upper brake light on Ford Transit Custom vans from 2012 to approximately May 2016. It is designed for earlier bulb-type brake lights and provides a detailed high-definition rear image through a genuine 1080P AHD output. If your van has the later LED-type brake light (around May 2016 onwards to 2024), please see our alternative listing for the LED version available here: LED version for Ford Transit Custom.

Please note: This 1080P AHD brake-light reversing camera for Ford Transit Custom is only compatible with AHD-compatible monitors and will not work with most factory or older displays. For the standard CVBS version, please see our Standard CVBS brake-light reversing camera for Ford Transit Custom.

Key features

  • Factory-fit replacement – installs in place of original upper brake light (bulb type)
  • 1080P AHD video output using C2399 CMOS PAL sensor
  • All-glass lens for a detailed rear image when reversing
  • 160° diagonal wide-angle coverage
  • Selectable on/off parking guidelines (loop wire)
  • IP68 waterproof housing, proven to withstand the worst the British weather can throw at it
  • Compatible with AHD and split-screen monitor systems
  • Optional 4-pin → RCA adaptor and 5 m – 15 m extension cables
  • UK-tested with 2-year warranty

Vehicle fitment

Compatible with the following vehicle models:

  • Ford Transit Custom (2012 – May 2016) – bulb-type brake light models

For later LED brake light versions (approx. May 2016 – 2024), please see our LED version listing.

AHD compatibility notice

Please note: This is a high-definition 1080P AHD camera. It must be used with a monitor or display that supports AHD video input.
Standard-definition (CVBS) screens will not display an image.
AHD-compatible displays are still relatively uncommon, but if you need one, please see our AHD monitor category.

Specification snapshot

Camera type Brake-light integrated reversing camera (bulb-type version)
Image sensor C2399 CMOS (AHD 1080P, PAL)
Lens All-glass optics for clear, accurate rear view
Viewing angle 160° diagonal ultra-wide
Video format AHD 1080P (PAL)
Guidelines Selectable on/off (loop wire)
Waterproof rating IP68 sealed housing, proven to withstand the worst the British weather can throw at it
Connector 4-pin aviation female plug (camera end)
Cable length options Selectable 5 m – 15 m (optional)
Guarantee 2-year UK warranty

What’s in the box

  • 1080P AHD brake-light reversing camera (CAM1732-AHD)
  • Optional 4-pin → RCA adaptor and/or extension cable (5 – 15 m, if selected)

Add a monitor and cable with one of our premium brake light reversing camera kits

If you would like a complete reversing camera kit for your van, including a display, please check out our links below. The kits come with this camera, a quality monitor, cabling, and a 2-year guarantee.

Information correct as of 00:21, Monday, November 17, 2025
