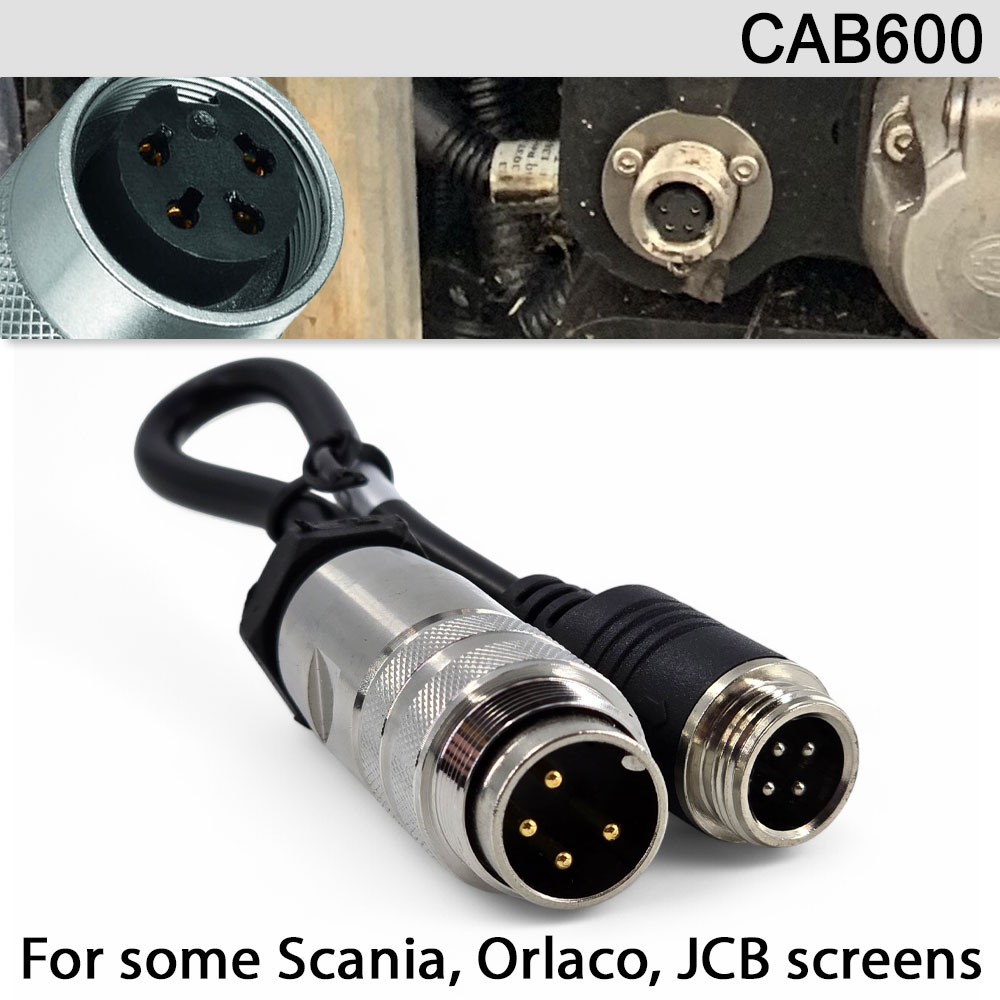

Merlo Telehandler Reversing Camera Adaptor Cable

This adaptor allows you to connect a typical 4-pin reversing camera to certain proprietary 4-pin systems used on machinery such as Scania, Orlaco and Famos monitors. It offers a cost-effective solution when you need to replace or upgrade your current reversing or CCTV camera without re-wiring.

Key features:

-Adapter for connecting a 4-pin reversing camera to a 4-pin Scania, Orlaco or Famos monitor

-Ideal for replacing cameras with the same 4-pin connection type

-Compatible with some Scania, JCB, Liebherr, Komatsu, Jungheinrich, CAT/Caterpillar, Toyota, Still and Hidromek systems (check compatibility before use)

-Not manufactured by the listed companies but built to work with their systems

-Provides a simple plug-and-play installation where supported

Compatibility notice – please read carefully before purchase:
While many of these monitor systems supply 12V to the camera, some are known to output 24V instead. Standard reversing cameras – including most we supply – are designed for 12V only and may be damaged if connected to a 24V feed.

We strongly recommend checking the voltage on your existing camera socket with a multimeter before use. If it outputs 24V, do not connect a standard 12V camera.

We are currently developing a limited batch of cameras that will safely accept both 12V and 24V inputs. If you are unsure, please contact us with details of your machine and we will advise before you order.
